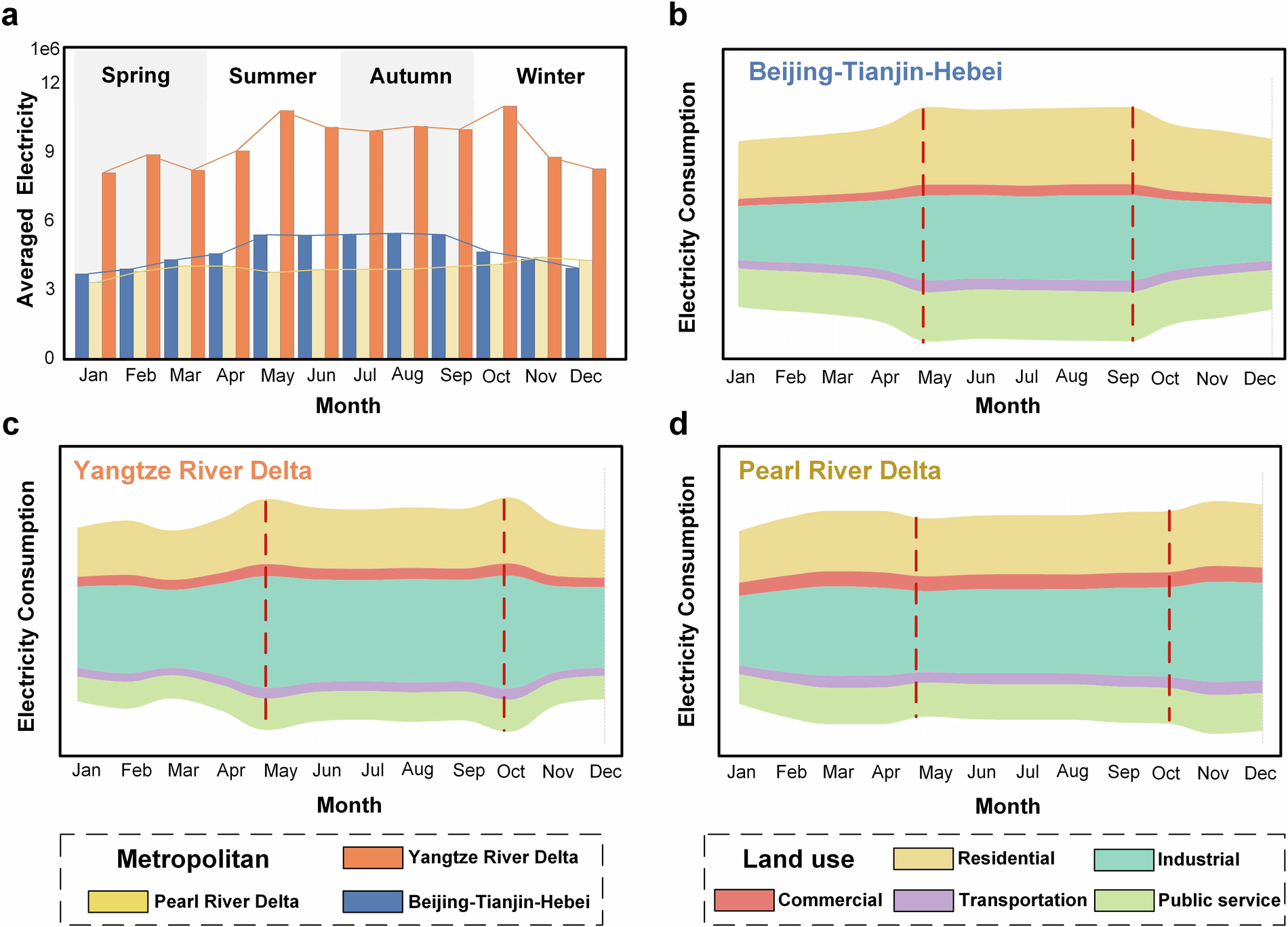

Fig. 6

Monthly electricity consumption in the three urban agglomerations in 2019, as well as details in various land use types. (a) represents the monthly electricity consumption of the three urban agglomerations. The YRD’s electricity consumption outstrips that of the PRD and BTH, a trend driven by its superior GDP of 29.03 trillion yuan, driven by Shanghai and three prosperous provinces, compared to the PRD’s 7.8 trillion yuan and BTH’s 6.9 trillion yuan. (b,d) Represent the monthly electricity consumption of the three urban agglomerations under different land use types in streamgraph.
