Fig. 11
From: Modelling the high-voltage grid using open data for Europe and beyond

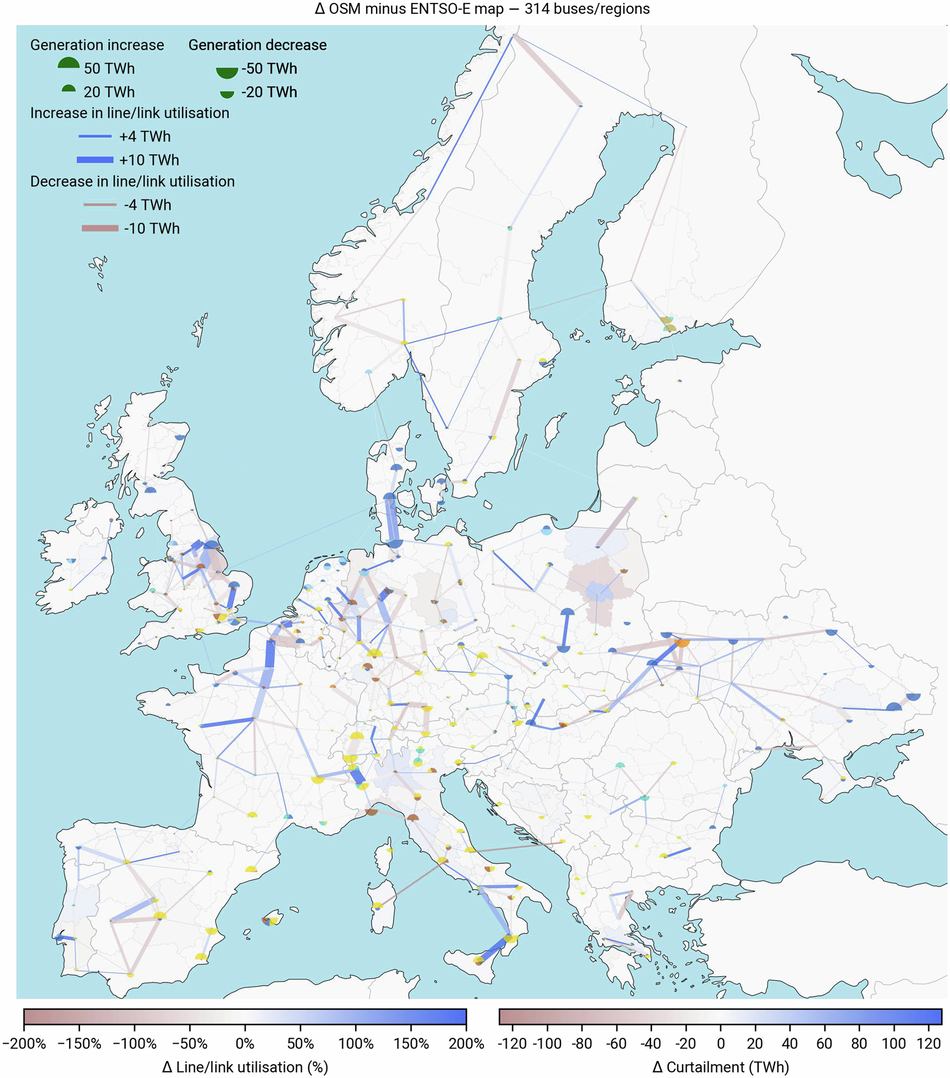

Regional dispatch, line utilisation and curtailment (delta). Blue indicates an increase in curtailment or line utilisation from the ENTSO-E map to the OSM-based transmission grid, while red indicates a decrease. For full transparency, note that this map shows an outer join of all transmission grid elements, including lines and links that are not present in the other network.
