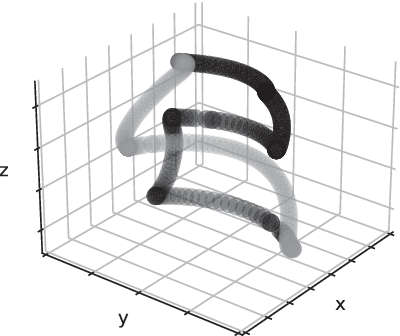

Fig. 11

Plot of the end effector’s position of the robot during a repetition with A = 2, R = 1, and V = High. The black trajectory represents the robot drawing the number on an imaginary plane, while the gray trajectory illustrates the robot’s movement from a fixed starting position to the imaginary plane and back.
