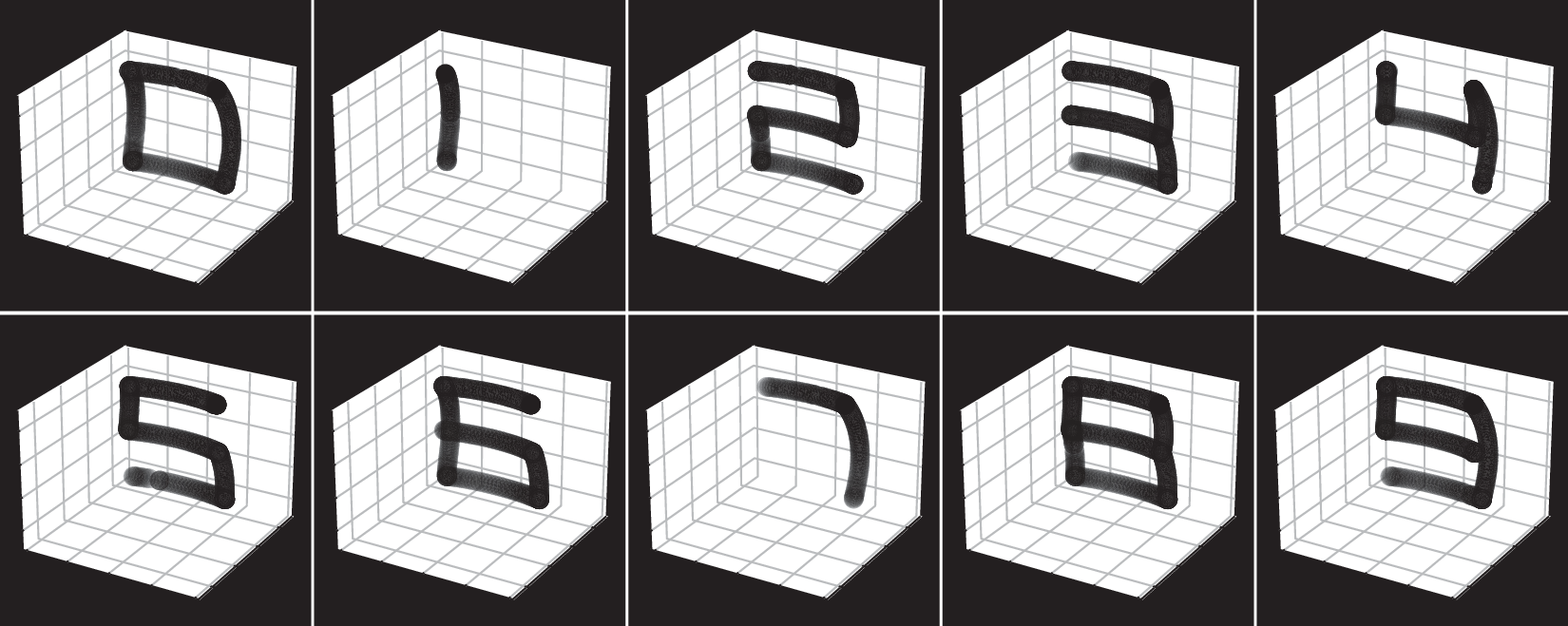

Fig. 4

Numbers 0 through 9 are drawn by the robotic arm on a vertical imaginary plane, resulting in 10 distinct classes of activities. The plot shows the end effector trajectories that form these numbers, with the robotic arm and background removed for clarity. For illustration purposes the initial and final parts of the robot’s trajectory, where the robot positions itself from its starting point to the imaginary plane and back, are omitted.
