Fig. 7
From: Pesticides application rate maps in the European Union at a 250 m spatial resolution

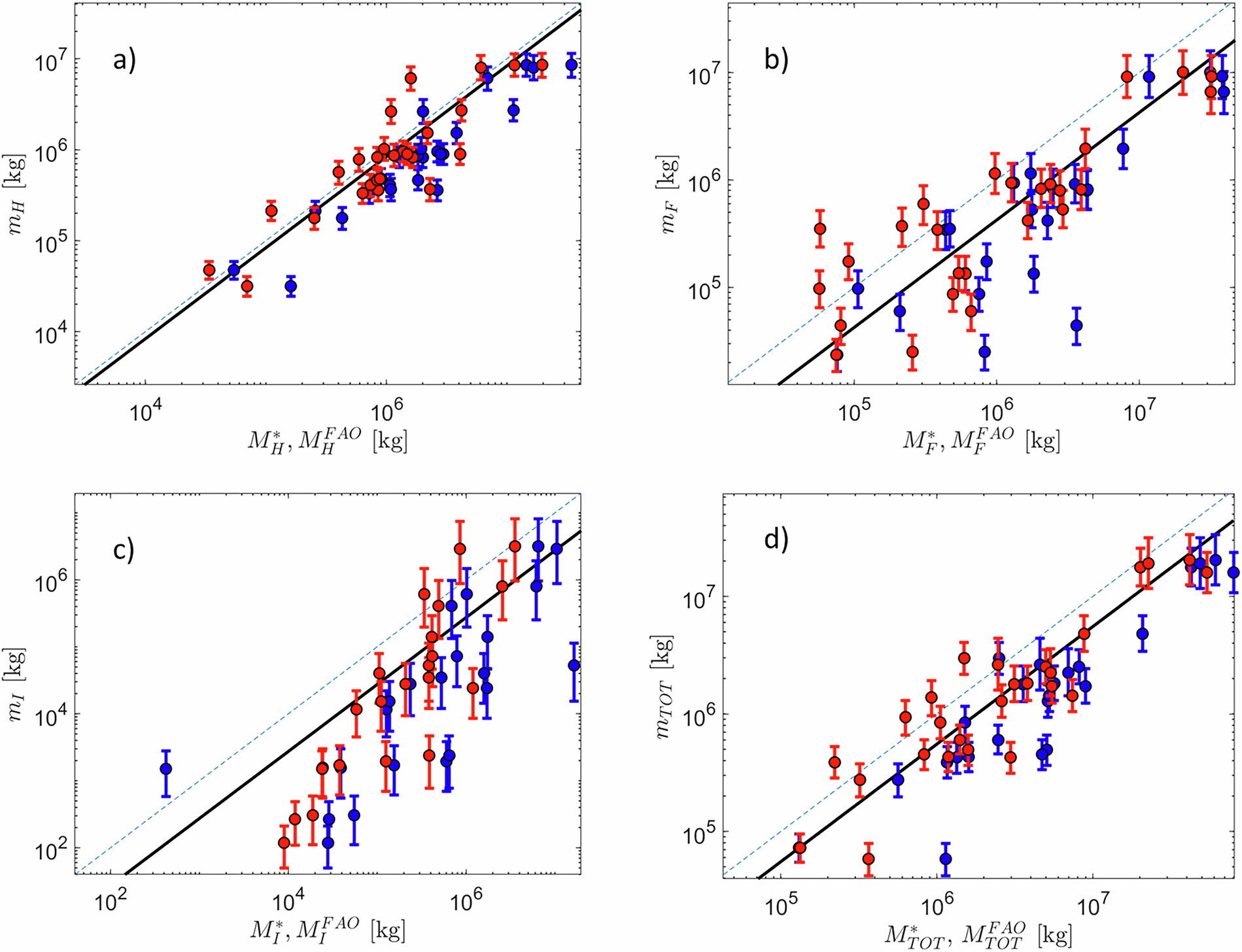

Scatter plot comparing the predicted cumulative mass of pesticides, Mmg, and that reported in EUROSTAT, \({M}_{mg}^{\ast }\), (in red) and in FAOSTAT, \({M}_{{mg}}^{{FAO}}\) (in blue) dataset. Results are for (a) herbicides, (b) fungicides, (c) insecticides, (d) total. In each subplot, the solid black line indicates the reference value, \({F}_{mg}^{\ast }\times {M}_{mg}^{\ast }\), the dashed blue line indicates the axes bisector.
