Fig. 2
From: A hybrid in situ and on-screen survey to monitor gully erosion across the European Union

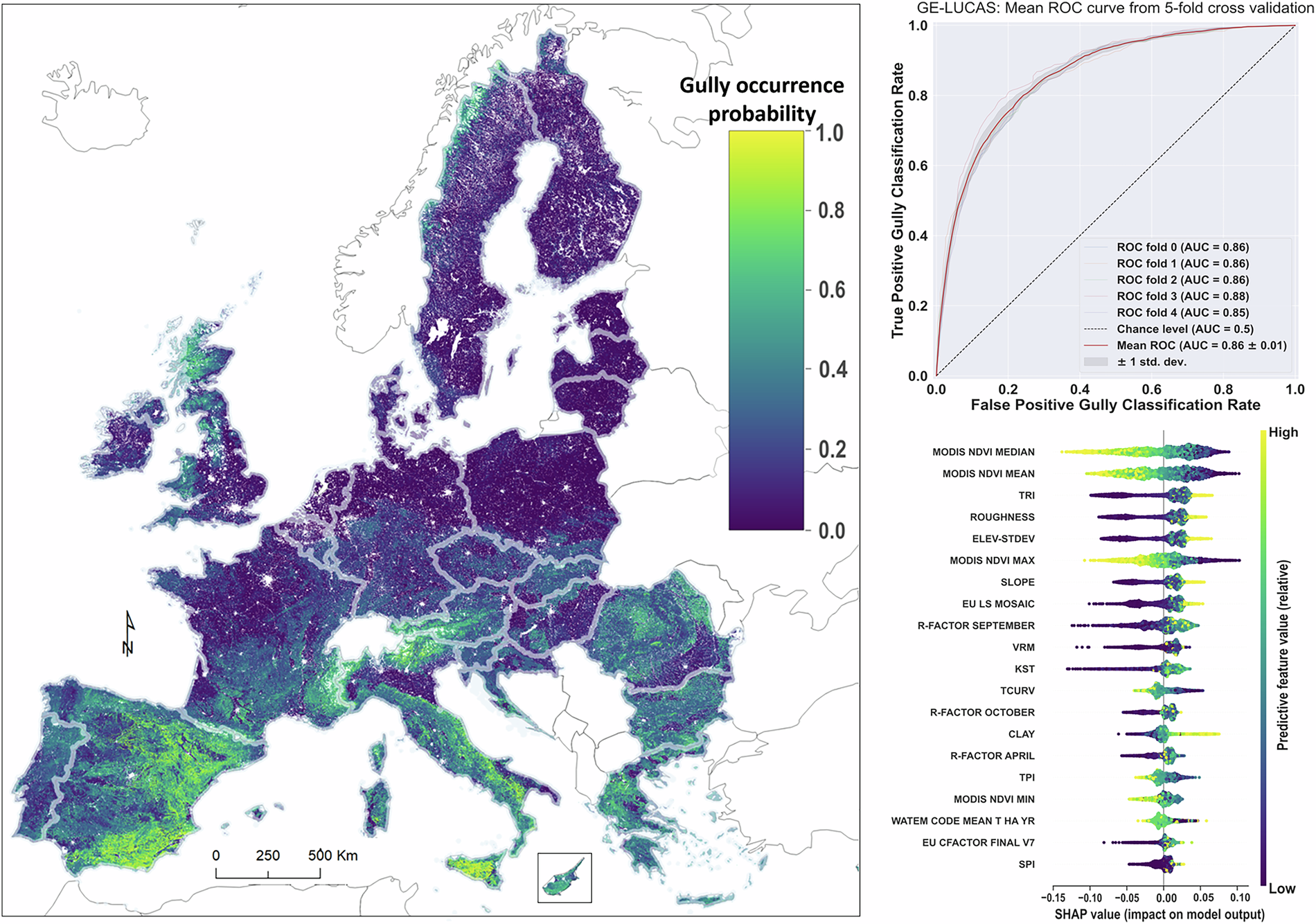

A summary of the: (a) the predictive interpolation of the gully erosion channels probability across the EU and the U.K. based on GE-LUCAS v1.1 points, (b) the individual and average Receiver Operating Characteristic (ROC) curves resulting from the stratified 5-fold cross-validation, and (c) a summary plot of the feature importance and their effects, according to the Shapley values. Features are ranked on the y-axis based on importance according to their absolute Shapley values, while individual Shapley value instances are plotted across the x-axis as a bee swarm plot.
