Fig. 5
From: Dataset on occupant behavior, indoor environment, and energy use before and after dormitory retrofit

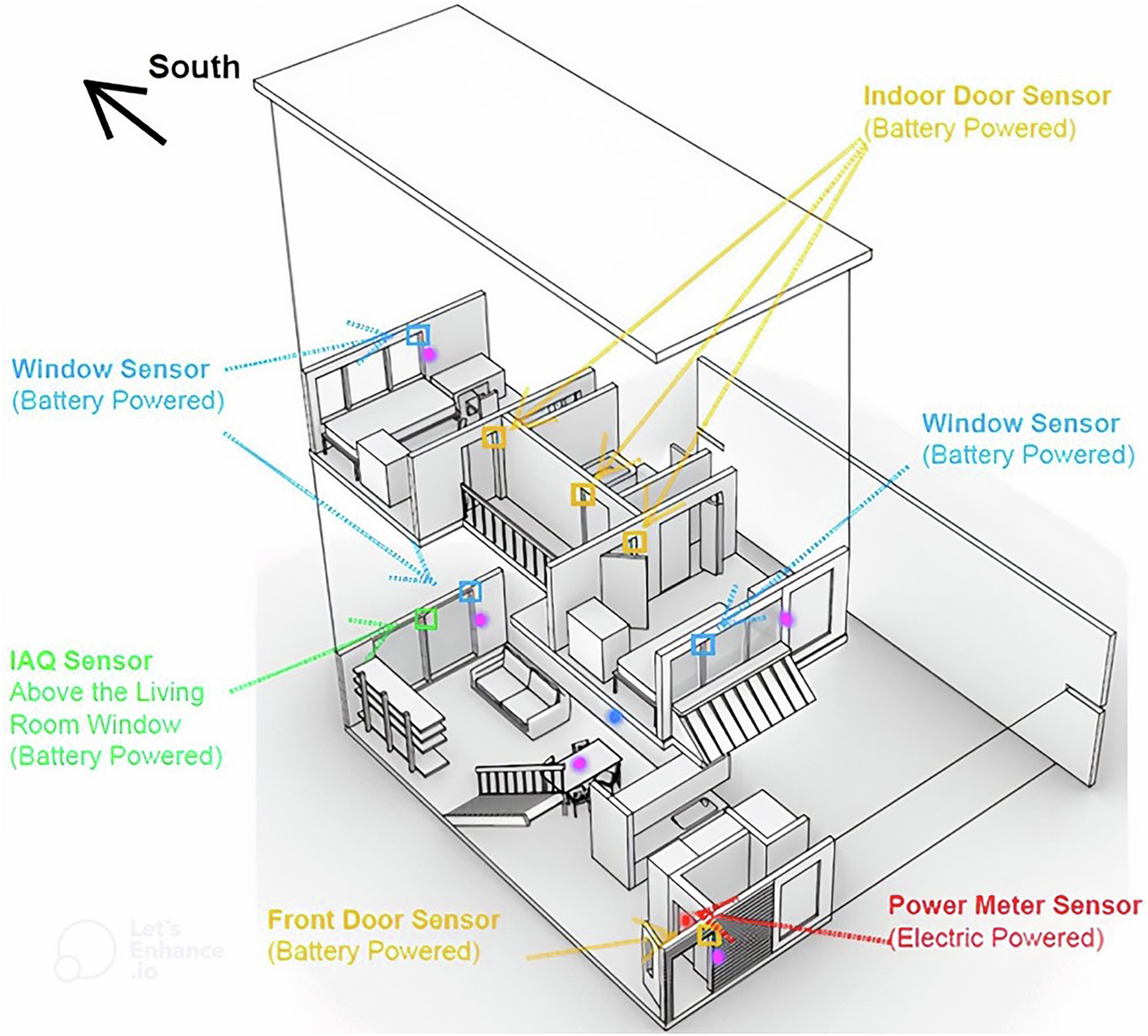

This figure illustrates the locations of the sensors installed in each dorm, along with the floor plans of the individual dormitories.
