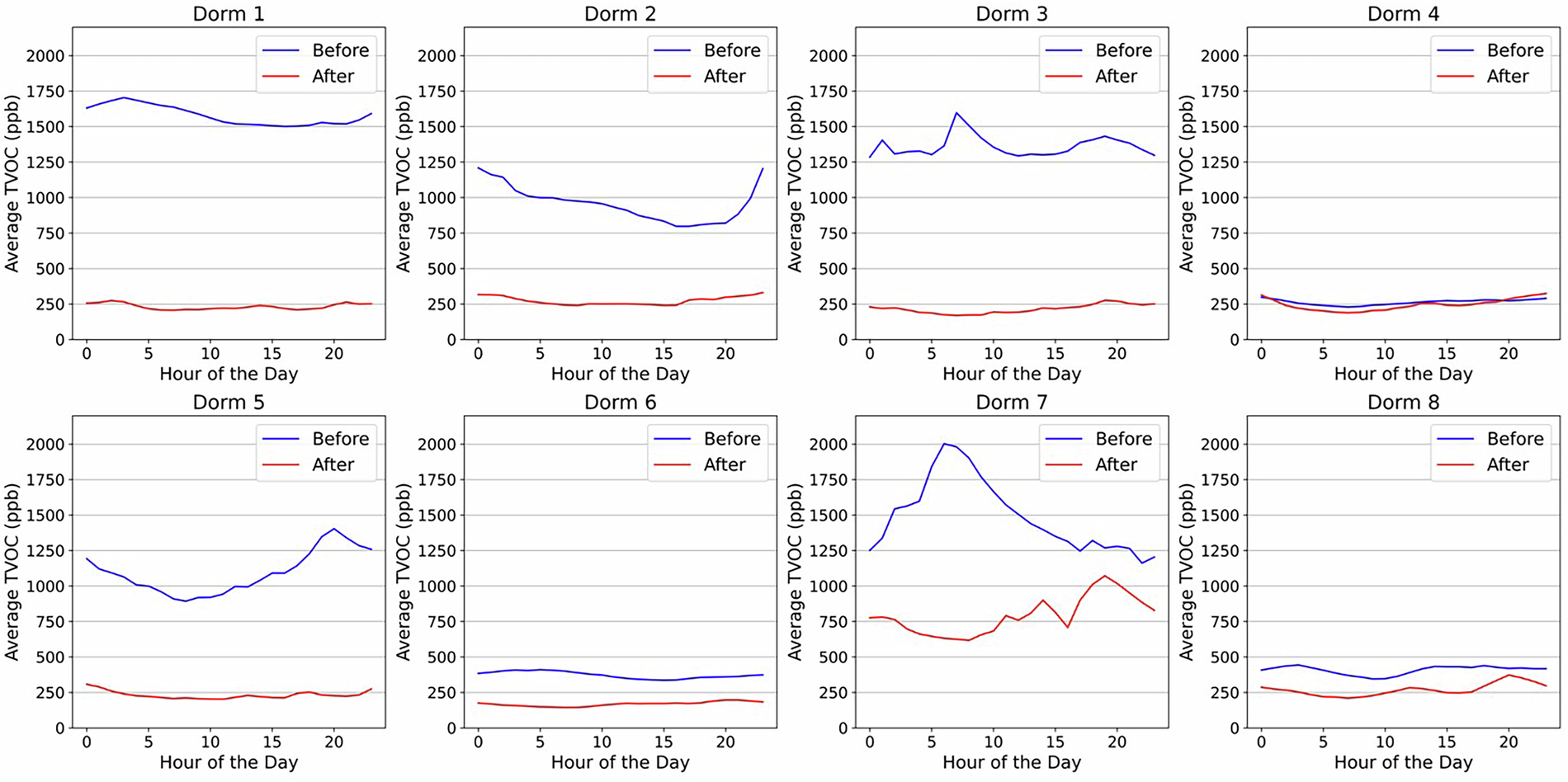

Fig. 8
From: Dataset on occupant behavior, indoor environment, and energy use before and after dormitory retrofit
This figure shows the hourly average TVOC concentrations in the dorms before and after the retrofit. Data was collected for two semesters both pre- and post-retrofit. The figure demonstrates that the inclusion of HRV systems significantly reduced indoor TVOC concentrations after the retrofit.
