From: Mouse Bone Marrow Neutrophil Extracellular Trap Proteomics by Microbial Stimuli

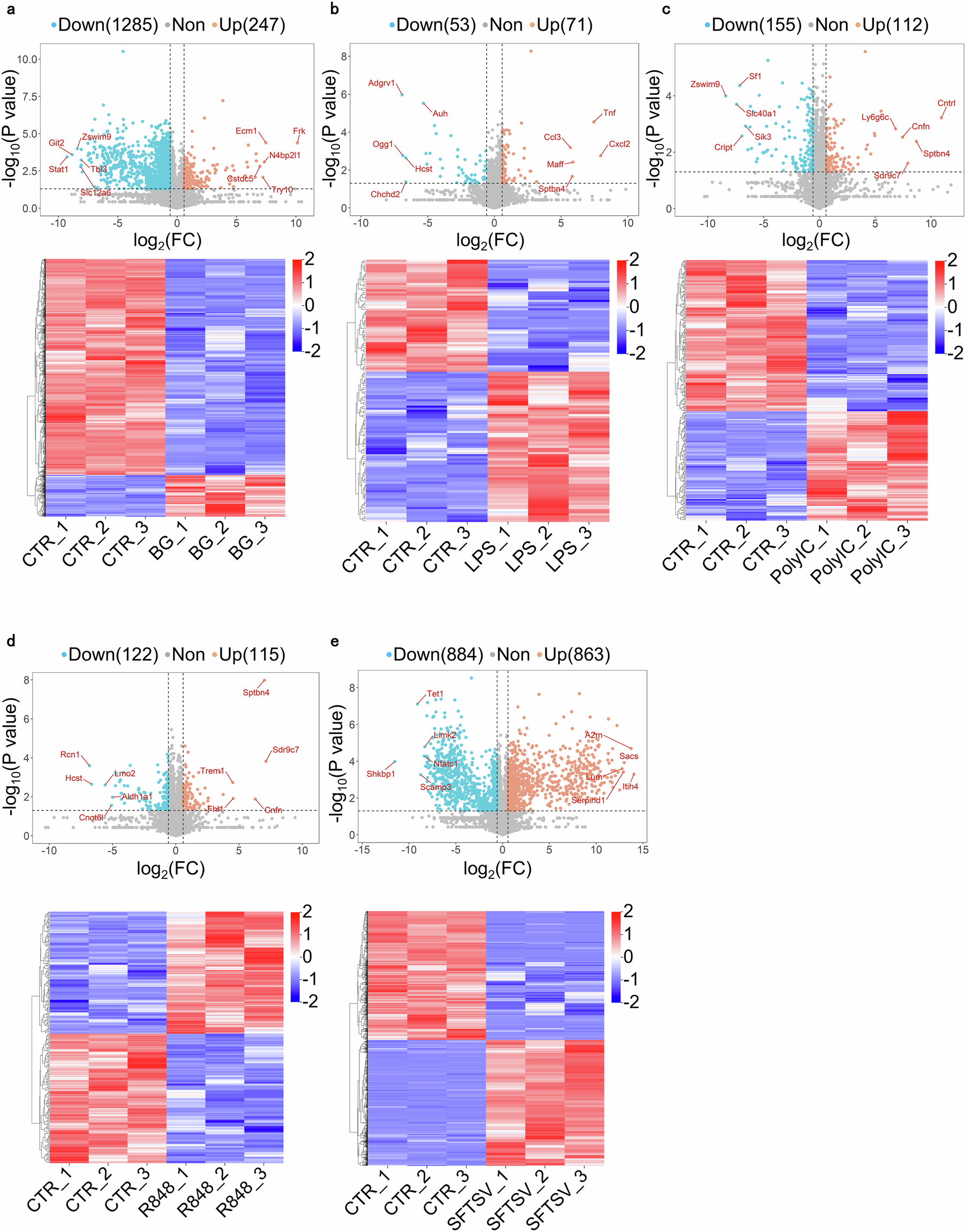

Protein differential expression analysis. Volcano plots (upper panels) and hierarchical clustering heatmaps (lower panels) showing differentially expressed proteins in the following comparisons: (a) BG_vs_CTR, (b) LPS_vs_CTR, (c) PolyIC_vs_CTR, (d) R848_vs_CTR, (e) SFTSV_vs_CTR. Notes: The volcano plots (upper) display each protein as a point, with differential expression defined by p < 0.05 and fold changes ≥1.5 (upregulated) or ≤0.66667 (downregulated). The hierarchical clustering maps (lower) represent proteins (rows) and samples (columns), with color gradients indicating the level of protein expression. Proteins with distinct expression patterns across different treatment conditions are clearly visible.
