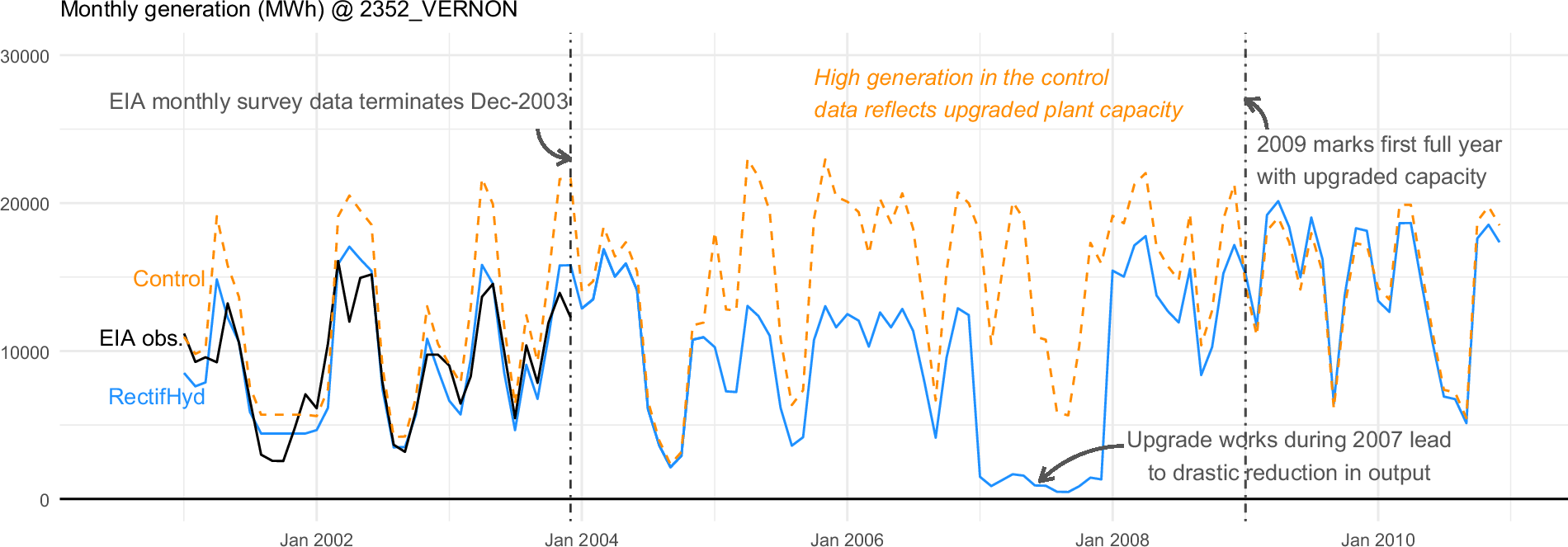

Fig. 4
From: Forty-year hydropower generation reanalysis for Conterminous United States
RectifHydPlus provides historical and hydrological control scenario monthly generation time series. This example shows a slice of the data for Vernon hydropower plant (EIA 2352). The data illustrate RectifHydPlus model performance (during pre-2004 period for which actual monthly observations are available) and show significant differences between historical estimates and hydrological control scenario, with the former reflecting reduced capacity as well as a major outage in 2007.
