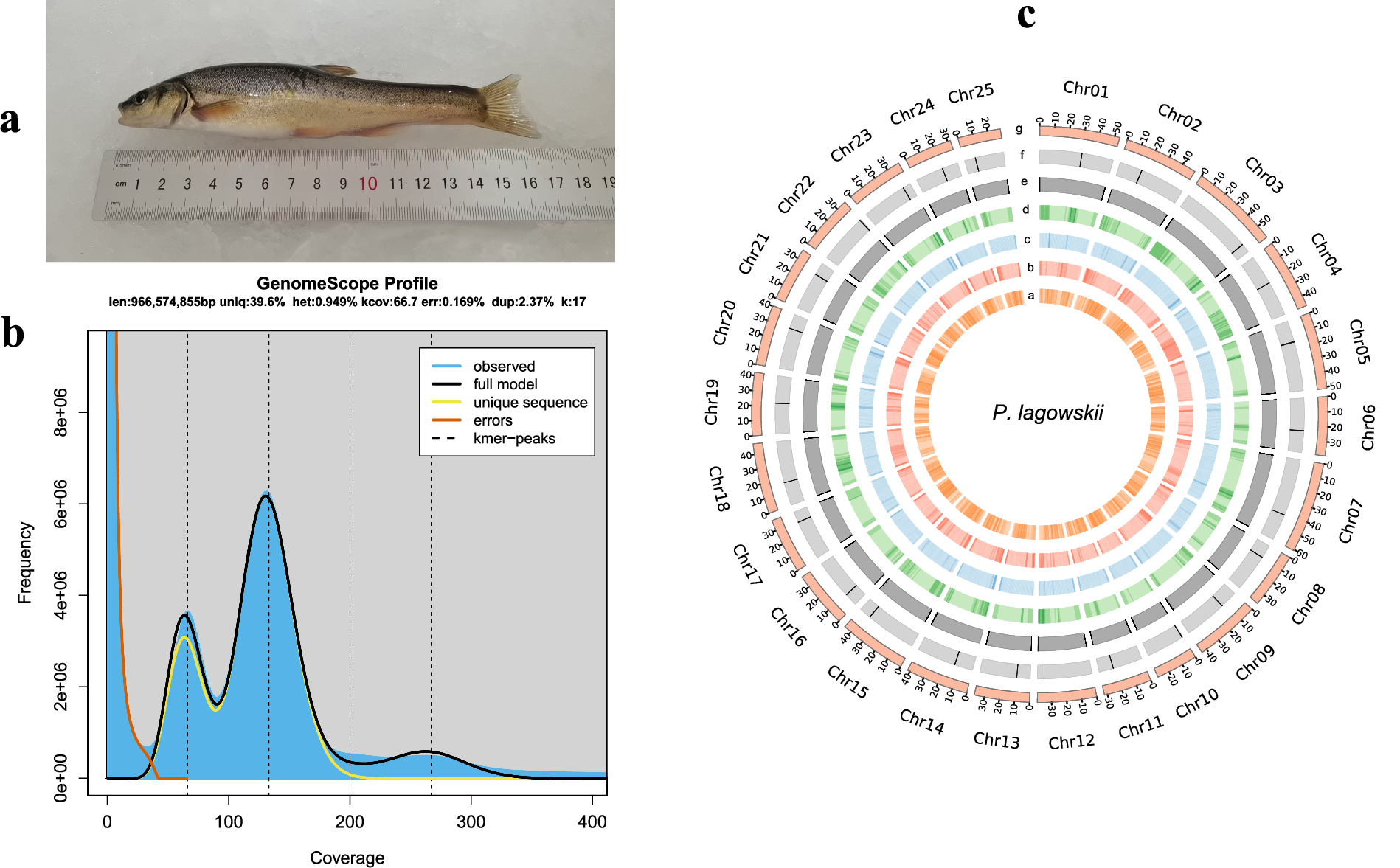

Fig. 1
From: Telomere-to-telomere genome assembly of Phoxinus lagowskii
The characteristics of P. lagowskii. (a)The picture of the P. lagowskii. (b) The genomescope plot of the P. lagowskii genome survey. (c) The circos plot of the P. lagowskii T2T genome. a: gene density in 1-Mb sliding windows; b: GC content in non-overlapping 1 Mb windows; c: percentage of tandem repeats in 1 Mb sliding windows; d: percentage of interspersed repeats in 1 Mb sliding windows; e: the heatmap of telomeric locations; f: the position of centromeres; g: the length of chromosomes in the size of Mb.
