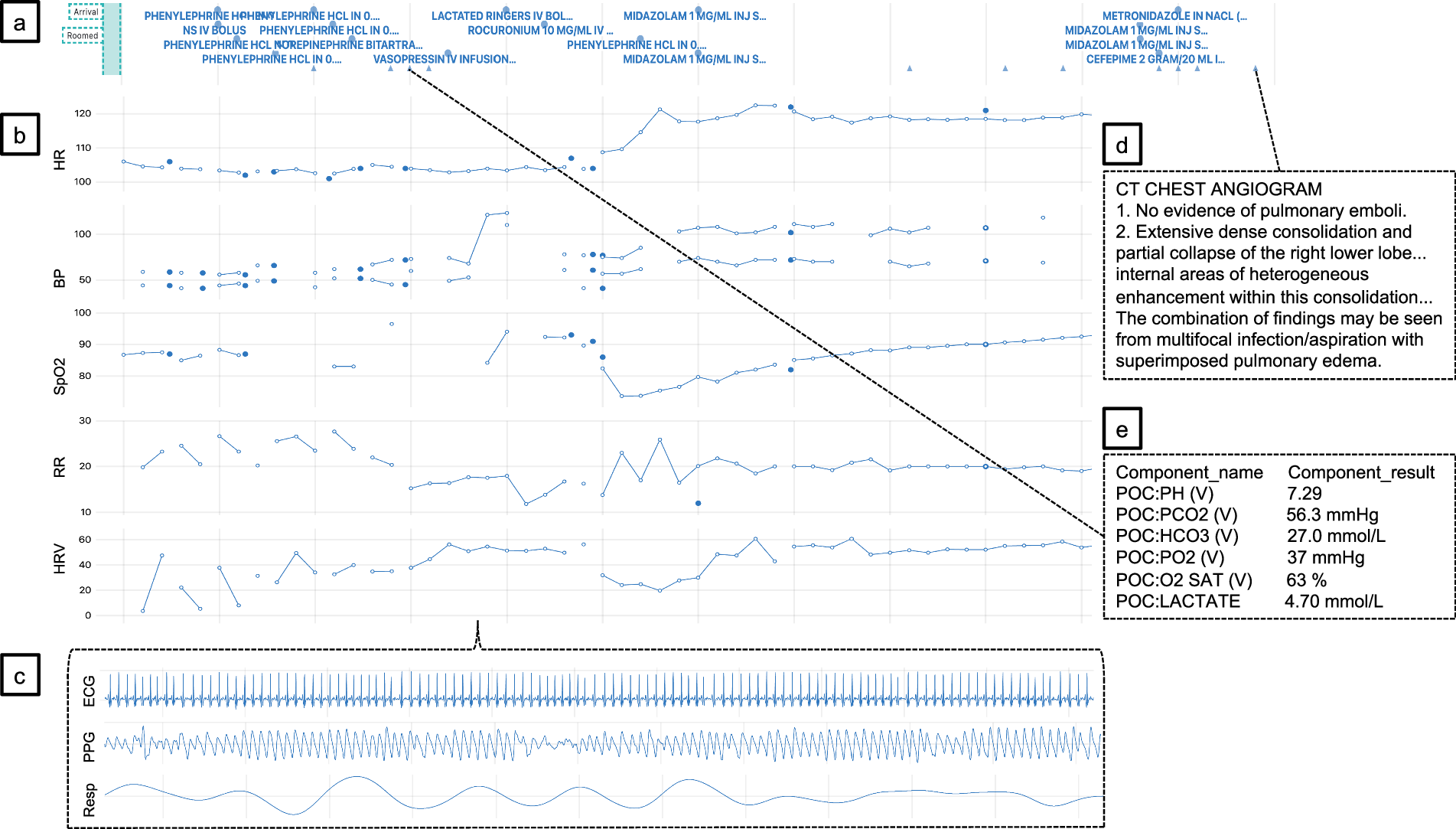

Time-varying data modalities recorded throughout a patient’s ED visit (CSN 99797372). (a) shows the orders placed by the ED physician. (b) shows selected numeric monitoring data, including heart rate (HR), blood pressure (BP), peripheral oxygen saturation (SpO2), respiratory rate (RR), and heart rate variability (HRV). (c) shows electrocardiogram (ECG), photoplethysmogram (PPG), and respiration (Resp) waveforms at a specific point in the visit. (d) shows a free-text radiology report. (e) depicts one of numerous time-stamped laboratory results.
