Fig. 4
From: A database of multimodal myography and hand kinematics during realistic daily life activities

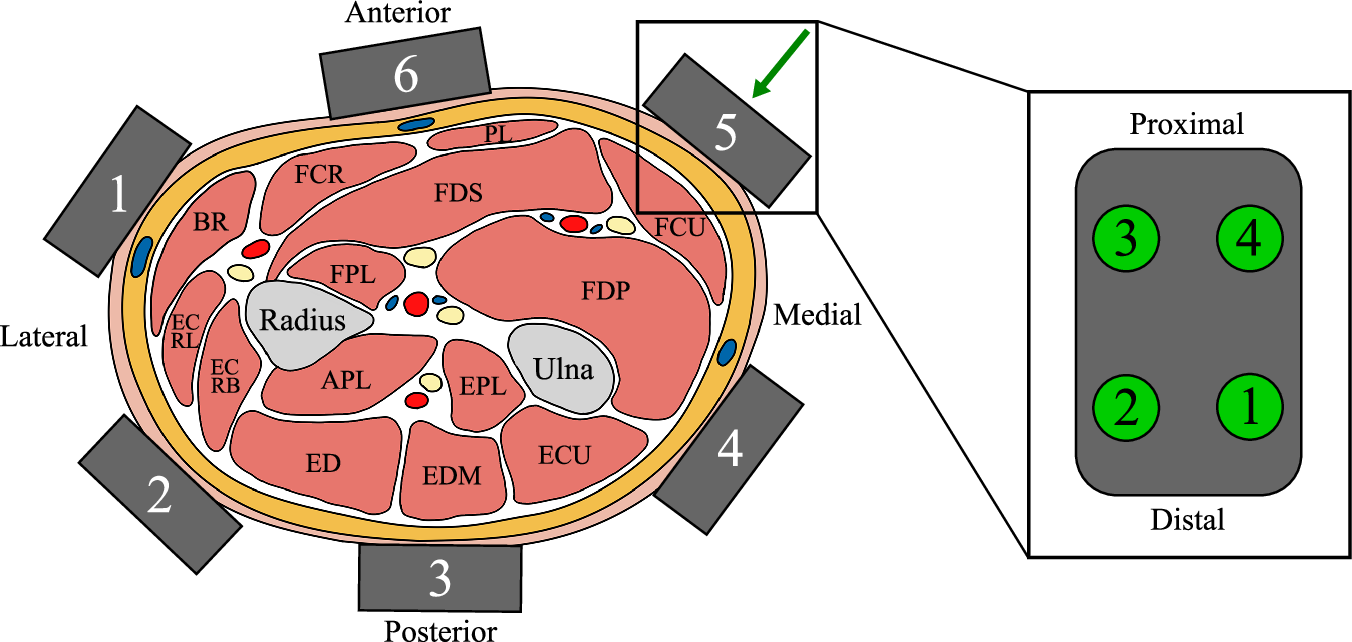

Sensor layout of the EMG/multimodal bracelet on the right forearm. The direction of the view can be depicted by the green arrow in Fig. 3 (distal to proximal). The gray rectangles represent the six modules of both the EMG bracelet and the multimodal bracelet. The layout of the FMG sensors is shown in the detailed view on the right (top view). Muscle abbreviations (left to right): Brachioradialis (BR), Extensor carpi radialis longus (ECRL), Extensor carpi radialis brevis (ECRB), Flexor carpi radialis (FCR), Flexor pollicis longus (FPL), Abductor pollicis longus (APL), Extensor digitorum (ED), Palmaris longus (PL), Flexor digitorum superficialis (FDS), Extensor pollicis longus (EPL), Extensor digiti minimi (EDM), Flexor carpi ulnaris (FCU), Flexor digitorum profundus (FDP), Extensor carpi ulnaris (ECU).
