Fig. 5
From: A database of multimodal myography and hand kinematics during realistic daily life activities

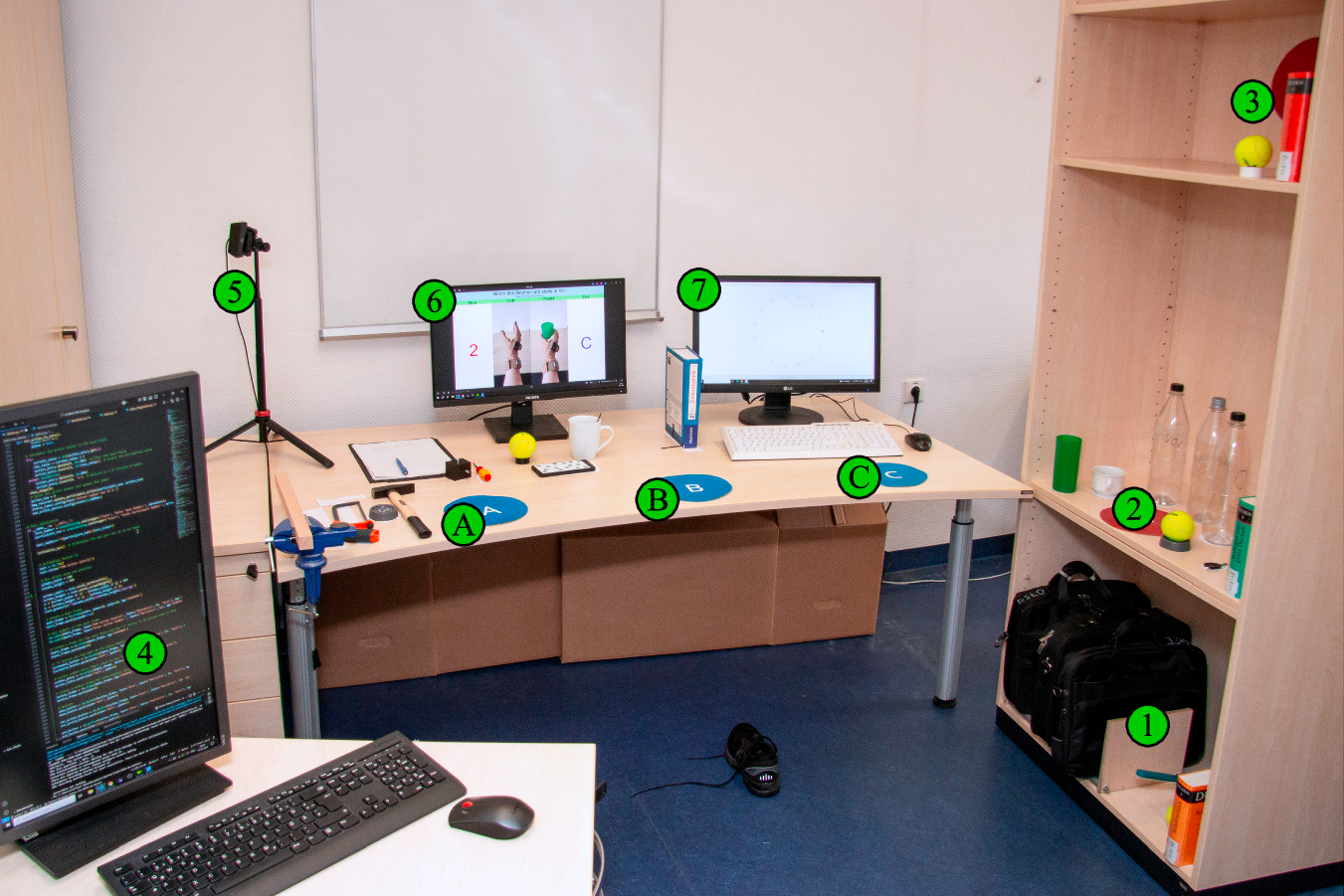

Experimental setup for the data acquisition. Markers 1, 2, and 3 show the object locations for the pick-and-place tasks, while A, B, and C mark the target locations. The experimenter (4) manually labeled the data with task ID and repetition. The participant’s actions were recorded on video by a webcam (5) to correctly annotate the data in case of errors by the experimenter or participants. The task instructions were displayed on a screen (6). A second screen (7) was provided to perform the clicking and typing tasks.
