Fig. 1
From: A spatial transcriptomics dataset of the endometrium from repeated implantation failure patients

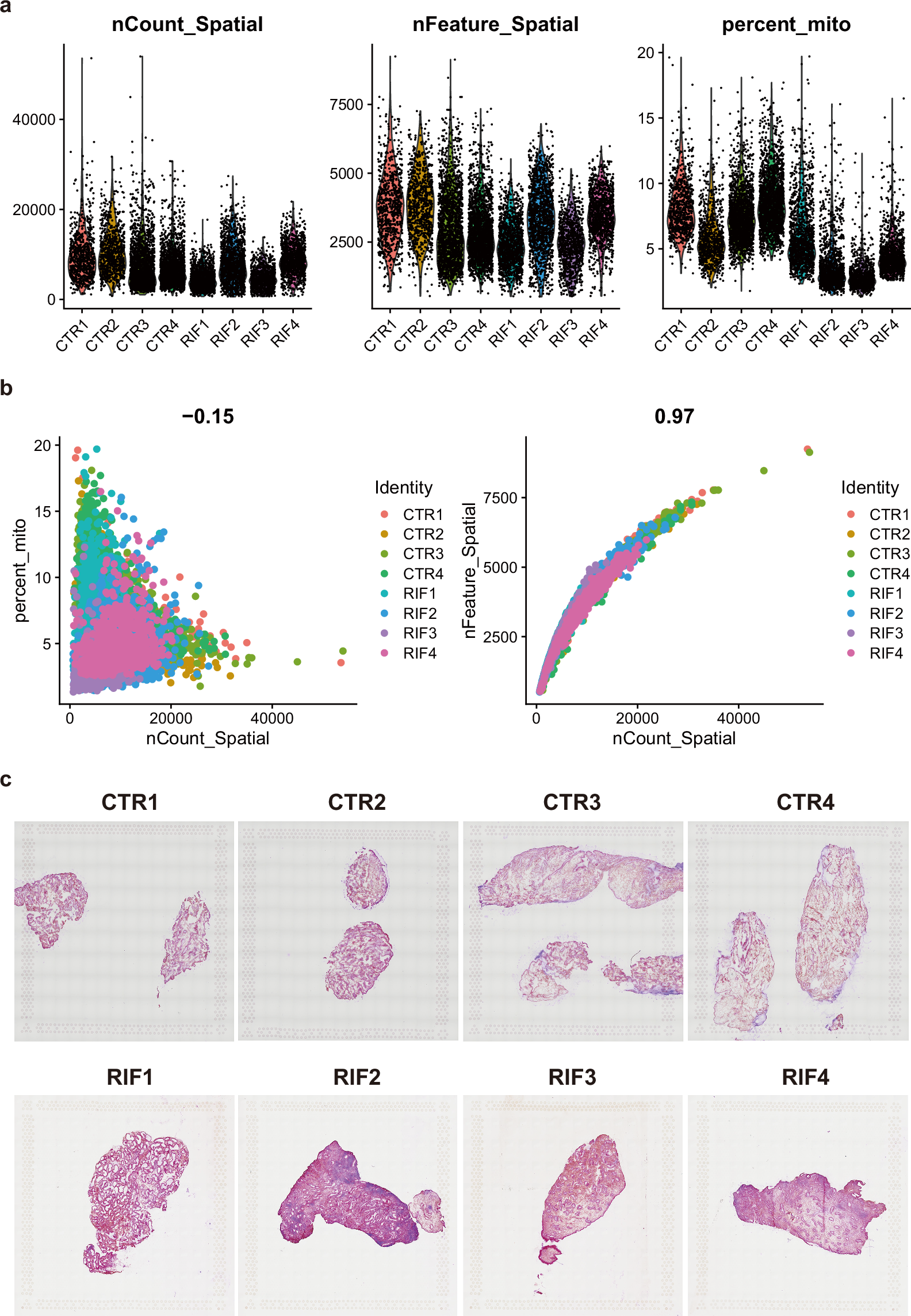

Quality control of the spatial transcriptomics dataset of the endometrium from four normal samples and four repeated implantation failure patients. (a) A Violin diagram illustrating the distributions of the number of unique molecular identifiers (UMIs), (nCount_Spatial), the number of genes (nFeature_Spatial) and the percentage of mitochondrial genes (percent_mito) in each spot of 8 samples. (b) Scatter diagrams showing the relationships between the UMIs counts and the percentage of mitochondrial genes (left), and between the UMIs counts and the gene counts (right). (c) Hematoxylin and eosin (H&E) staining images for eight samples.
