Fig. 6
From: Thermal reaction of the subsurface on the operation of a geothermal planar trench collector

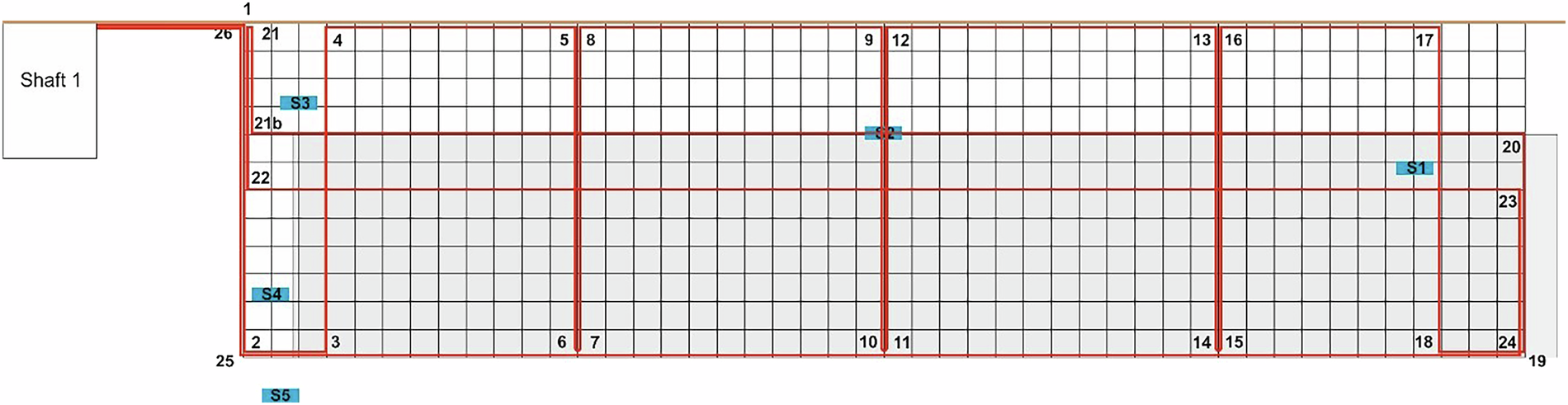

Sketch showing the position of the fibre optic cable along the steel mat. The fibre optic cable is laid along the positions (numbers); the approximate relative position of the collector is marked in grey and S1 to S5 are moisture sensors (see chapter 2.3 and 3.3).
