Fig. 8
From: Thermal reaction of the subsurface on the operation of a geothermal planar trench collector

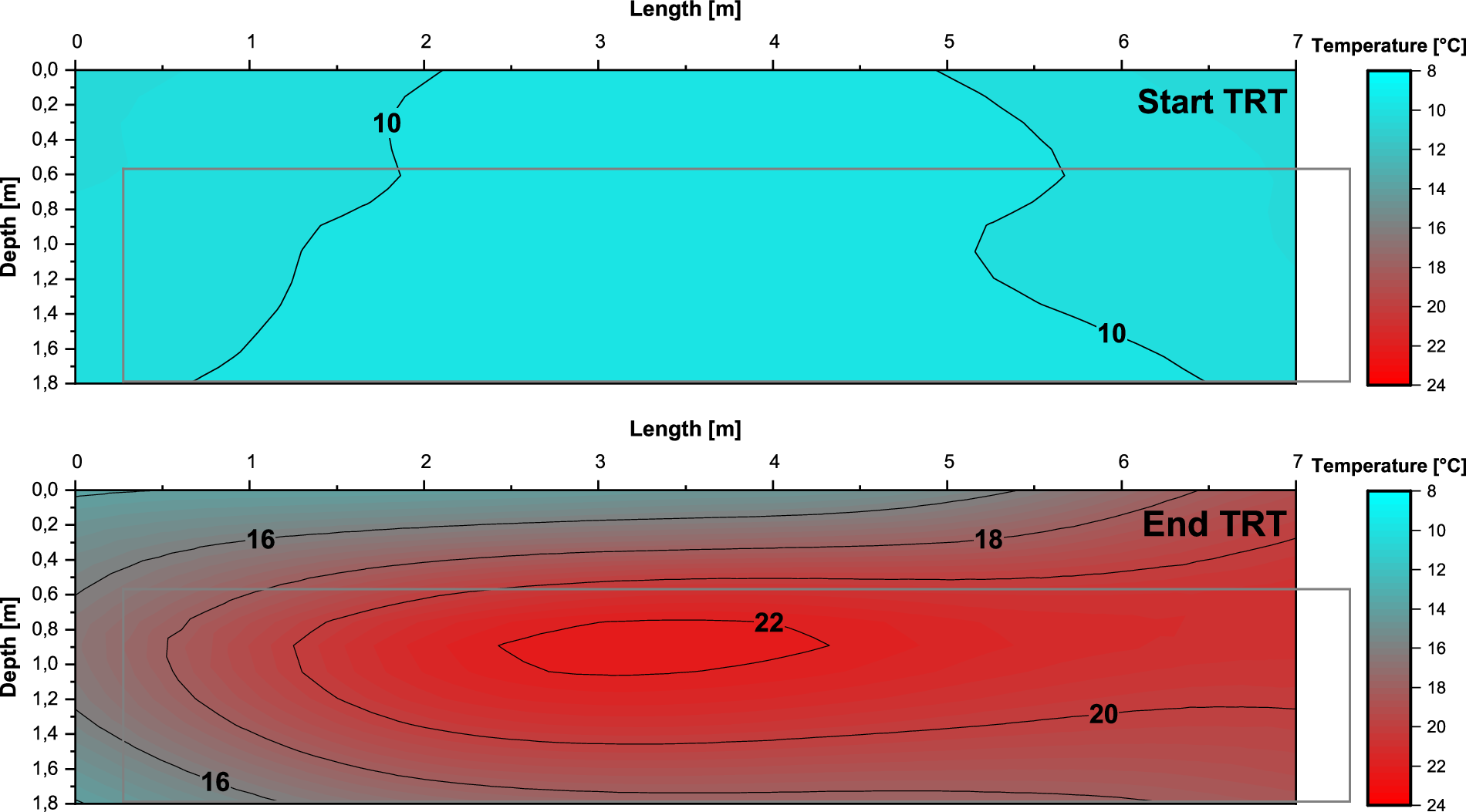

Contour plot of the DTS measurements of the fibre optic cable mounted at the steel mat at the beginning and end of the TRT.
