Fig. 4
From: Multidimensional Datasets Supporting Vulnerability Assessments of Riverine Bridges in Peru

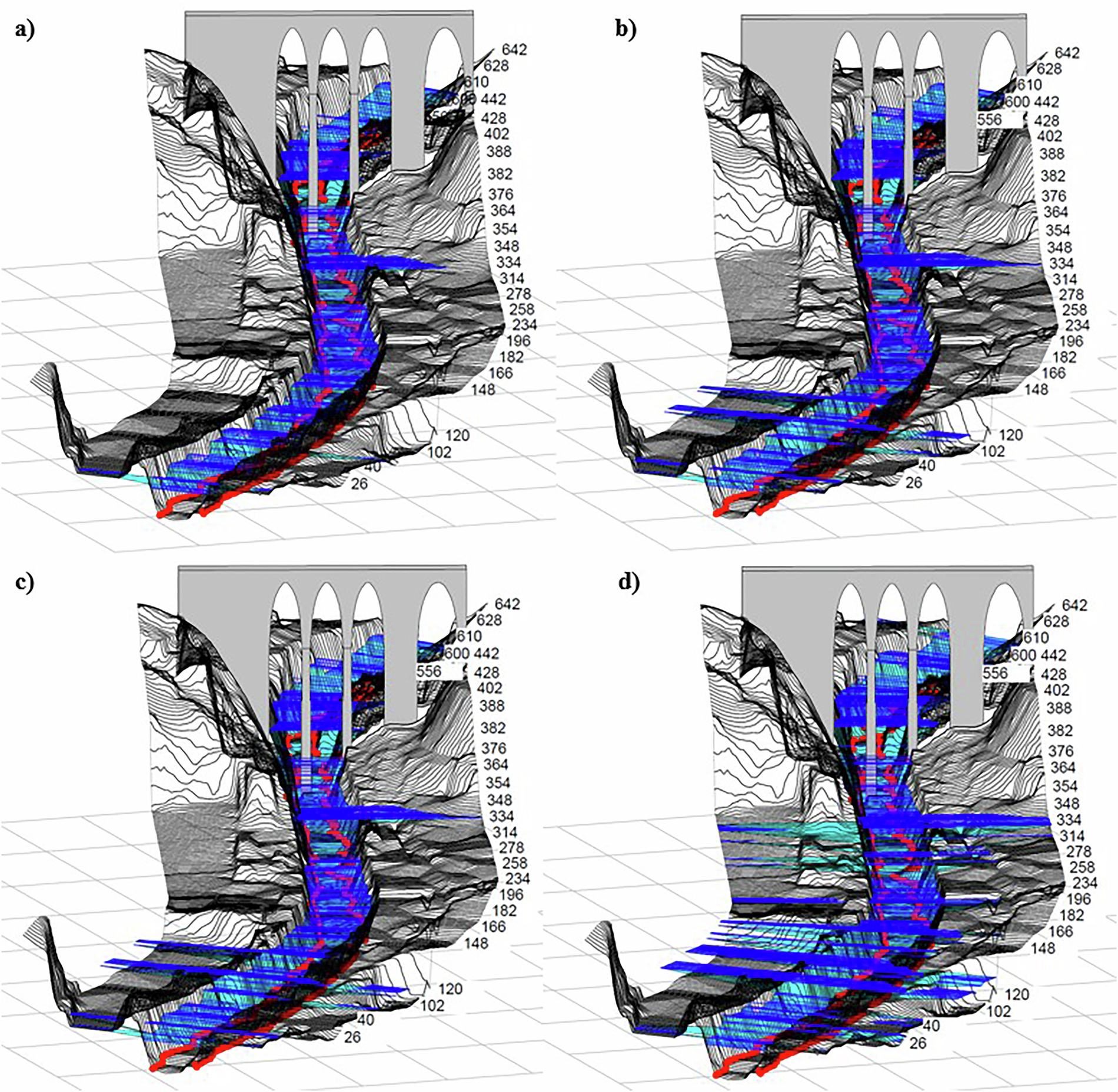

1D modeling of the Grau Bridge10 in HEC-RAS (Data set 2) for different flow rates: (a) T50 = 223.0 m³/s; (b) T100 = 248.5 m³/s; (c) T200 = 273.0 m³/s; y (d) T500 = 304.3 m³/s.
