Fig. 2
From: Scalable cyberinfrastructure for experimental NMR data

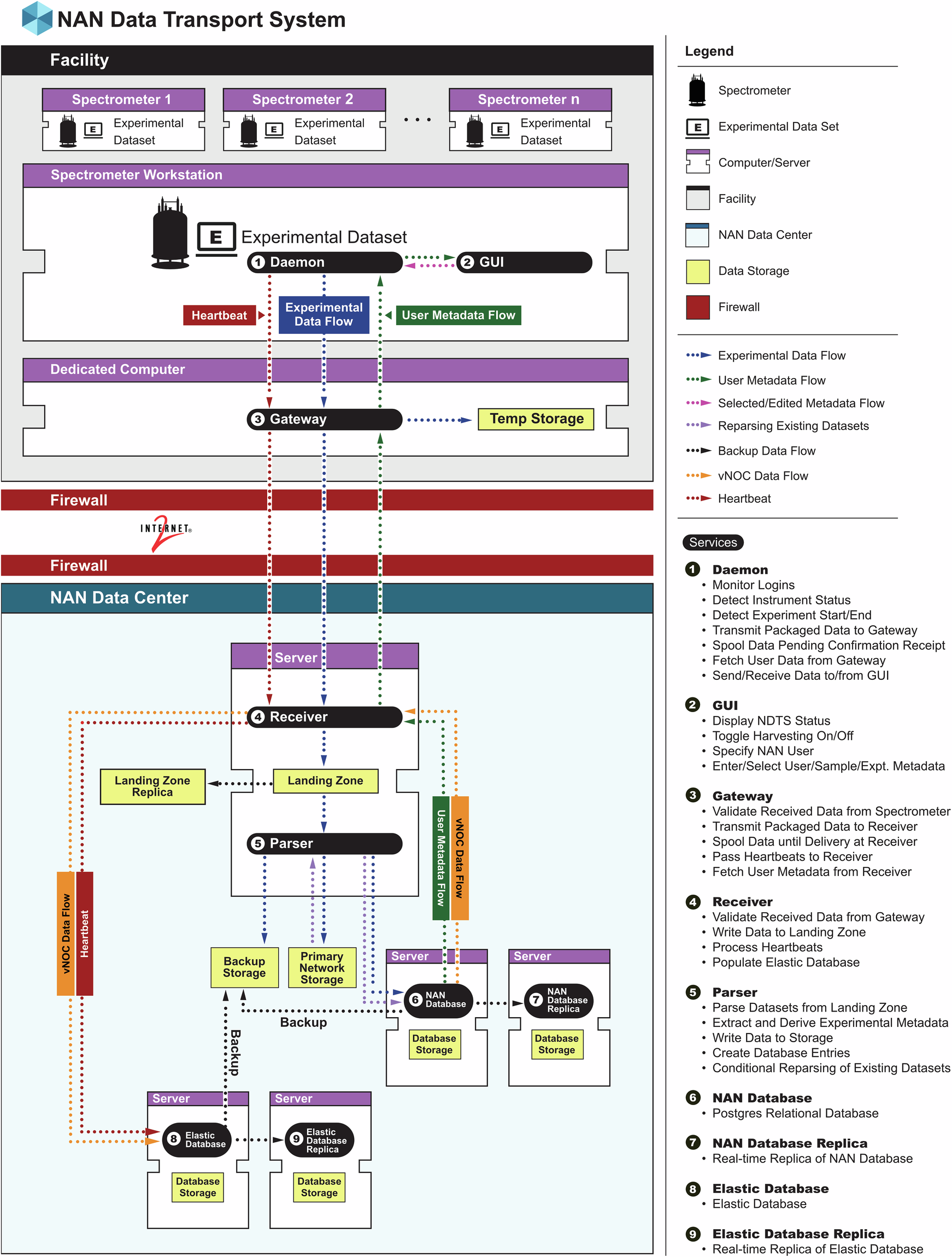

NAN Data Transport System (NDTS) Data Flow and Architecture. Schematic illustration the flow of experimental data, metadata, and system heartbeats within NDTS. The diagram depicts only a single NMR facility node. In addition to metadata associated with experimental datasets depicted by blue arrows, metadata from the NAN portal (e.g. NAN user list, local workstation to NAN user associations, users projects, studies, and samples, default NDTS settings for users) is conveyed to the spectrometer workstation.
