Figure 7
From: Polarization conversion when focusing cylindrically polarized vortex beams

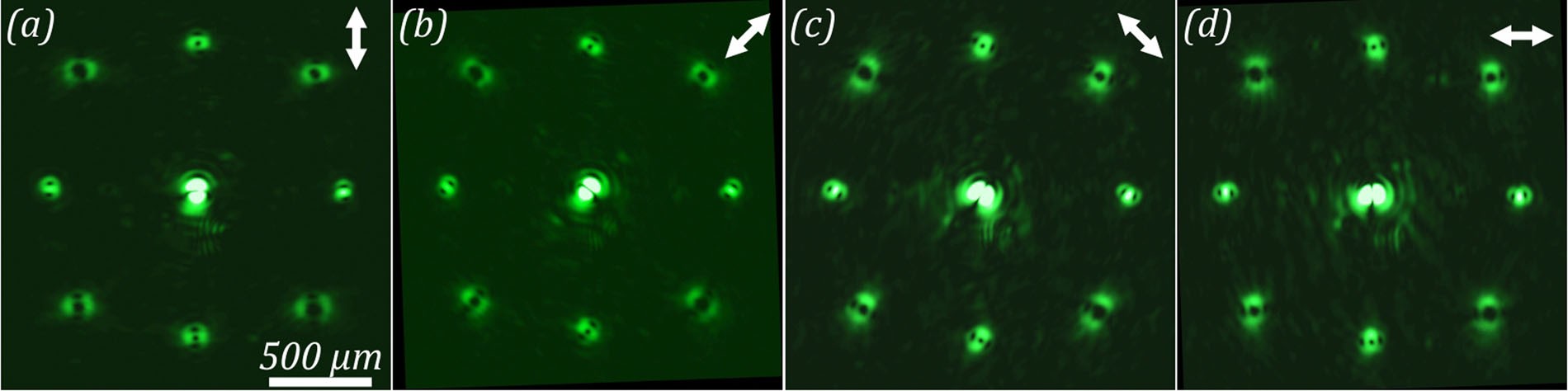

Diffraction pattern formed in the far-field region when passing the laser beam through the amplitude diffractive optical element, generating a superposition of eight vortex beams for different orientations of the analyser. (a) 0, (b) +45, (c) −45, and (d) 90 degrees.
