From: Functional Characterization of Populus PsnSHN2 in Coordinated Regulation of Secondary Wall Components in Tobacco

Figure 1

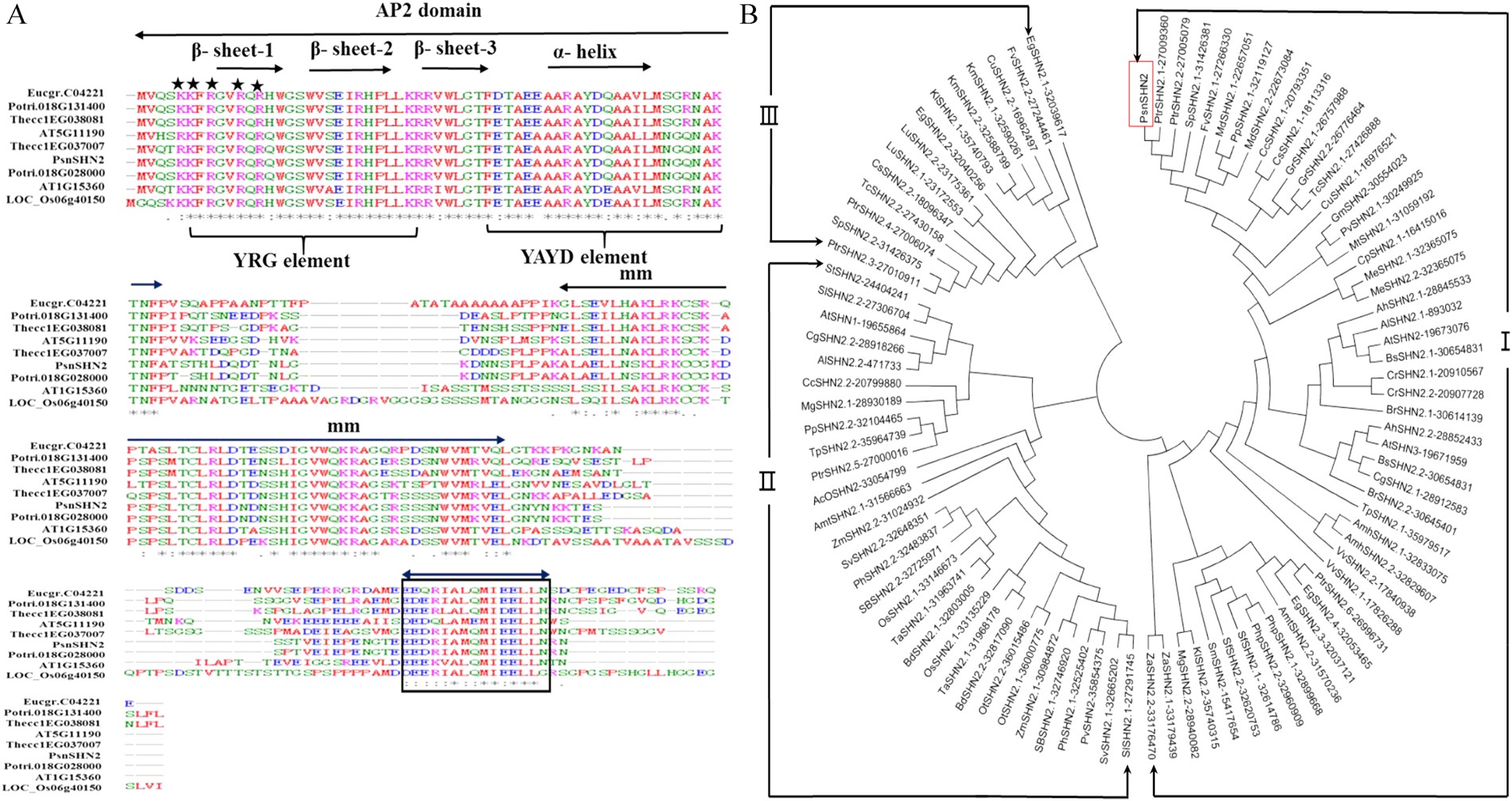

Protein sequence alignment and phylogenetic analysis of PsnSHN2. (A) PsnSHN2 was aligned with SHINE proteins from Populus trichocarpa (Potri.018G028000 and Potri.018G131400), Eucalyptus globulus (Eucgr.C04221), Theobroma cacao (Thecc1EG038081 and Thecc1EG0370070), Oryza sativa (LOC_Os06g40150) and Arabidopsis thaliana (AT1G15360 and AT5G11190). The conserved YRG and RAYD elements in AP2 domain are indicated by brackets. α helix is indicated by an arrow; cm stands for c-terminal domain while mm represents middle domain; Asterisks mark the putative domains for nuclear localization signals; the boxed region indicates the putative activation domain. (B) Phylogenetic analysis of PsnSHN2 with other SHINE proteins. 93 SHINE genes of 44 species are available in Supplemental file. PsnSHN2 is shown in a red rectangle. The number after short dash is gene ID number from the phytozome database.
