Figure 7

From: Functional Characterization of Populus PsnSHN2 in Coordinated Regulation of Secondary Wall Components in Tobacco

Figure 7

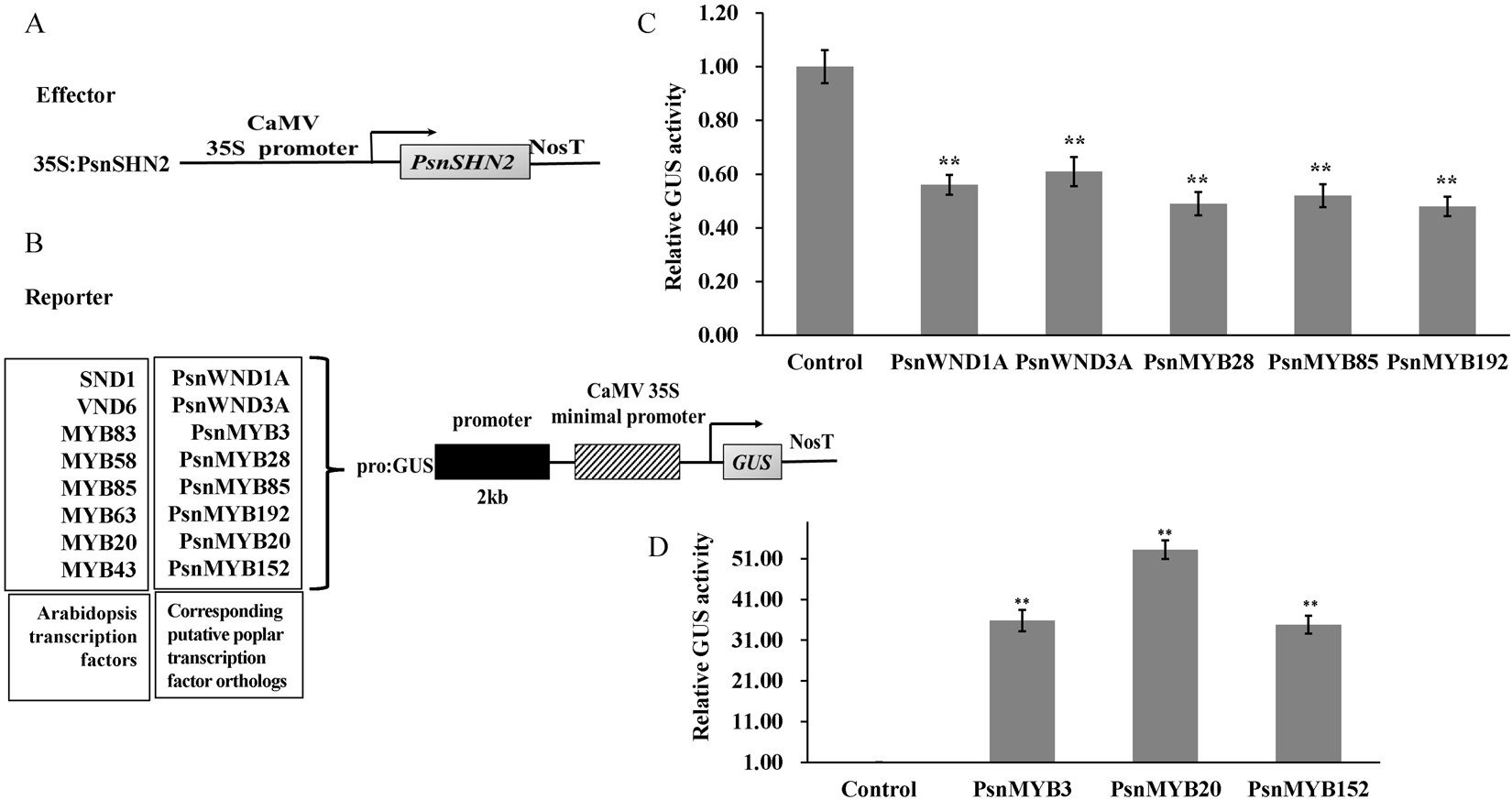

Activation or repression of the promoters of poplar TFs by PsnSHN2. (A,B) Diagrams of the effector and reporter constructs. (C,D) The expression of the GUS was repressed and activated by PsnSHN2, respectively. GUS activity in tobacco leaves transfected with the reporter construct alone was used as a control and was set to 1. Error bars represent SD of three biological replicates. Asterisks indicate levels of significance of differential expression (t test; *P < 0.01).
