Figure 2
From: Amplification on Undirected Population Structures: Comets Beat Stars

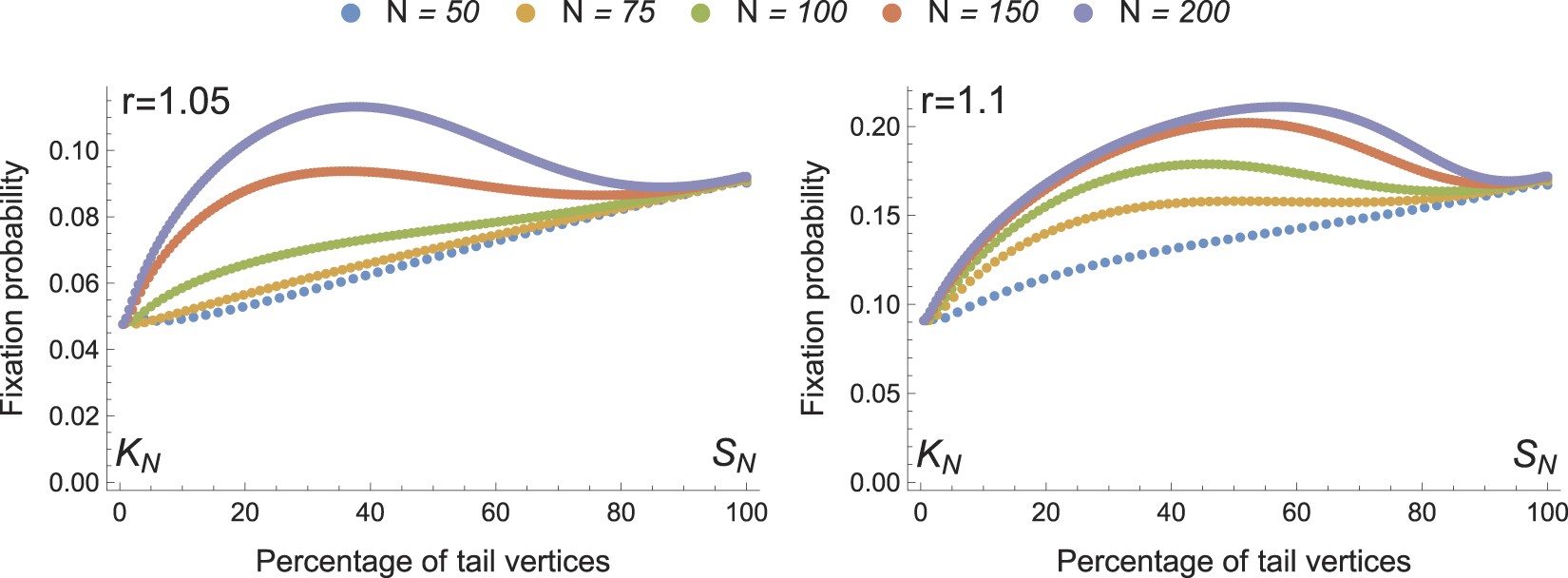

Fixation probabilities on the Comet graphs \({{C}}_{{N}}^{{m}}\). The Clique graph K N and the Star S N graph appear in the leftmost and rightmost points respectively. The X-axis shows the percentage of the vertices that appear in the tail of the Comet, with the remaining vertices appearing in the head of the Comet. In each case, all data-points which appear higher that the rightmost point of the plot correspond to Comets which amplify selection more strongly than the Star.
