Figure 2
From: Multimode fiber tip Fabry-Perot cavity for highly sensitive pressure measurement

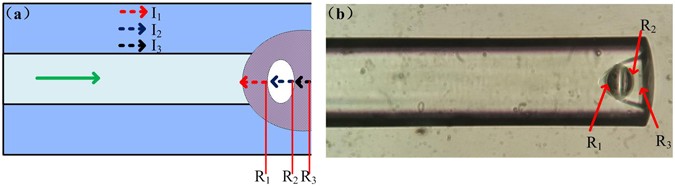

(a) Schematic diagram and (b) the microscope image of the sensor head.
