Figure 4
From: Pd/ZnO nanorods based sensor for highly selective detection of extremely low concentration hydrogen

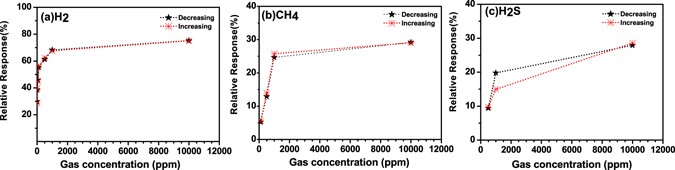

(a–c) Hysteresis studies for H2, CH4 and H2S at 150 °C for increasing and decreasing gases concentration.
