Figure 6
From: Pd/ZnO nanorods based sensor for highly selective detection of extremely low concentration hydrogen

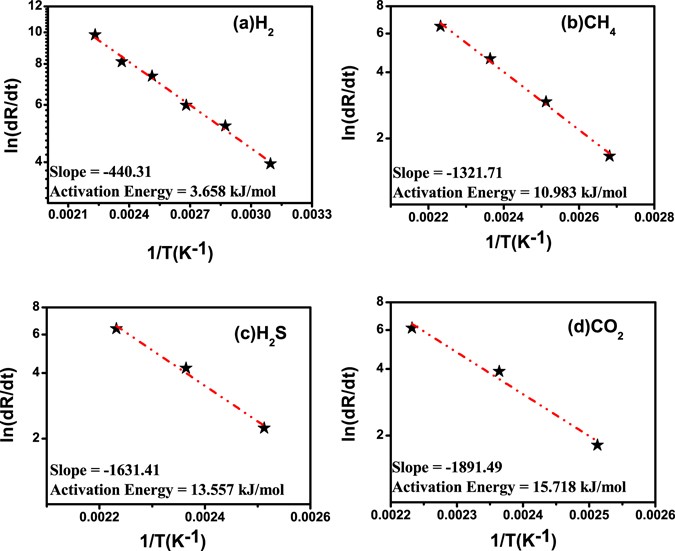

Arrhenius plot of rate of resistance change with temperature after exposure of 1% concentration of (a) H2, (b) CH4, (c) H2S and (d) CO2 gases.
