Figure 2
From: Ligand co-crystallization of aminoacyl-tRNA synthetases from infectious disease organisms

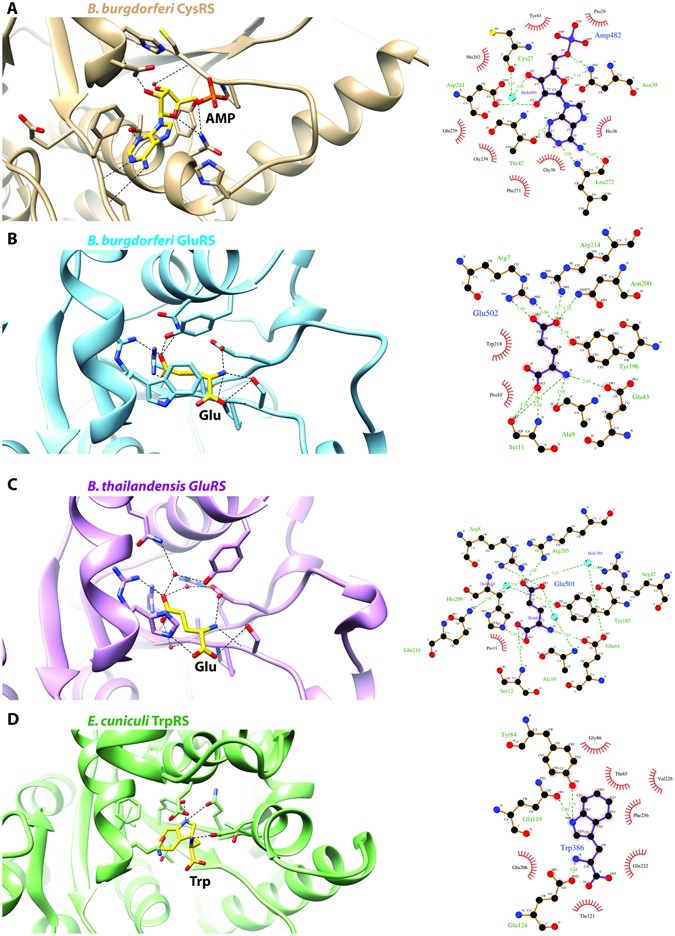

Ligand recognition by class 1 aaRS enzymes from infectious disease organisms. (A) class 1a CysRS from Borrelia burgdorferi (B) class 1b GluRS from B. burgdorferi (C) class 1b GluRS from Burkholderia thailandensis and (D) class 1c TrpRS from Encephalitozoon cuniculi.
