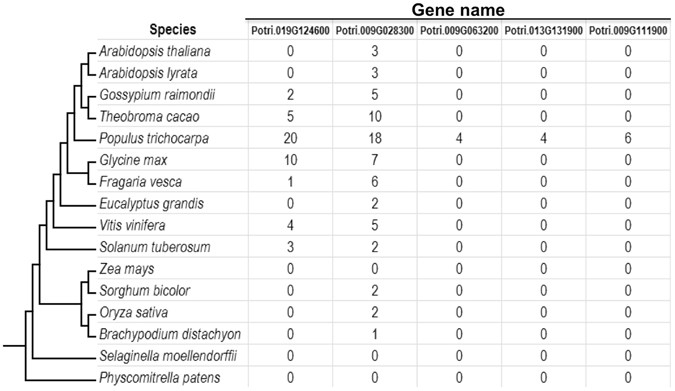

Lineage-specific expansion of small secreted proteins (SSPs) associated with Populus trichocarpa-Laccaria bicolor interaction. Due to space limitation, only five genes (Potri.019G124600, Potri.009G028300, Potri.009G063200, Potri.013G131900 and Potri.009G111900) showing lineage-specific expansion are shown in this figure. See Supplementary Tables S4 and S5 for details about the SSP genes showing lineage-specific expansion in Populus and closely related plant genera. The phylogenetic tree was adapted from http://phytozome.jgi.doe.gov.
