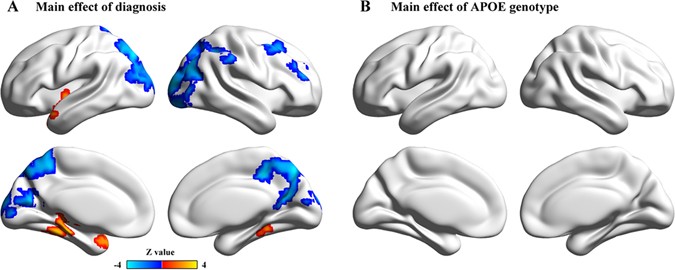

Figure 2
Main effect of diagnosis on EC. (A) Statistical map of the main effects of diagnosis. The statistical significance threshold was set at |z| > 1.96 (P < 0.05), and cluster size > 4,266 mm3, which corresponded to a corrected P < 0.05. The color map shows significant differences in Z between the aMCI and HC groups. Warm colors represent higher EC values in the aMCI group compared with the HC group, while the cool colors represent the opposite. (B) Statistical map of the main effects of APOE genotype. There was no significant effect of APOE genotype on EC. EC, eigenvector centrality; HC, healthy control; and aMCI, amnestic mild cognitive impairment.
