Figure 4
From: Efficient ECG Compression and QRS Detection for E-Health Applications

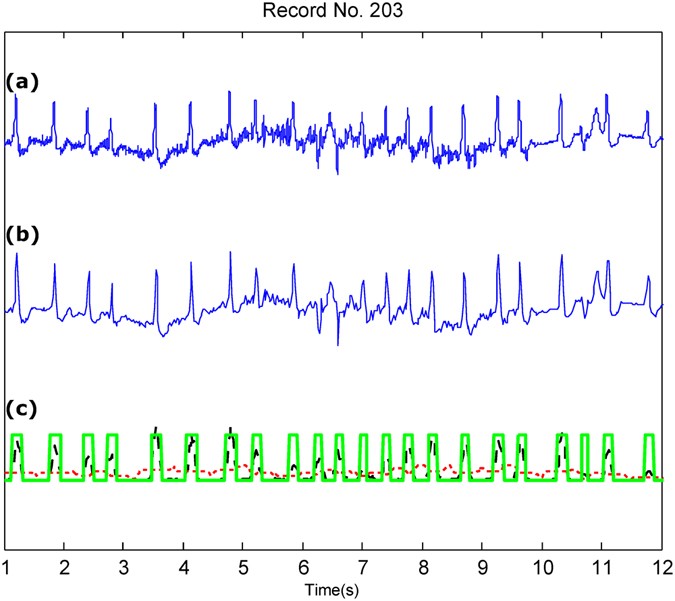

QRS detection over Record 203 of the MIT-BIH Arrhythmia Database with severe baseline drift and noise. (a) Original ECG signal (b) Compressed ECG signal using Method III (c) Compressed ECG signal using Method III with adaptive thresholding and detected QRS complexes (green blocks). Signal amplitudes have been manipulated to fit all signals in one figure. Here, the red dotted line represent the first moving average where the black dashed line represents the second moving average.
