Figure 4
From: Visualization of weak interactions between quantum dot and graphene in hybrid materials

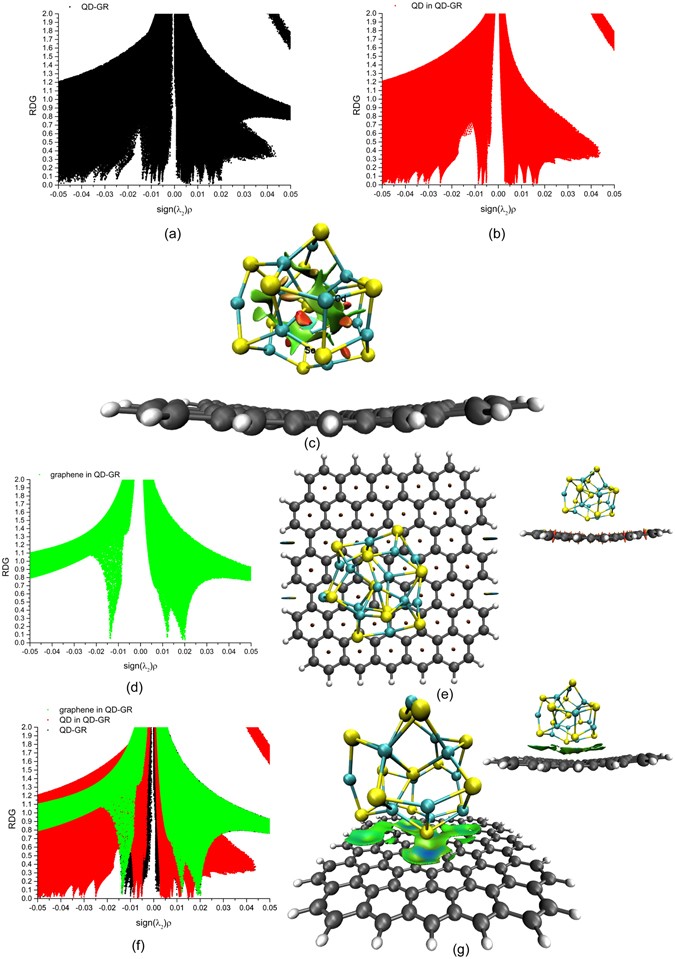

The 2D scatter graphs of the hybrid QD-GR system and the 3D colour graphs of the RDG isosurfaces corresponding to a blue-green-red colour scale date range from −0.02 a.u. −0.02 a.u. (a) The 2D scatter graph of the hybrid QD-GR structure. (b,c) The 2D scatter graph of the QD in the hybrid QD-GR structure and the 3D colour graph of the RDG isosurface with a cutoff value of 0.29 a.u., respectively. (d,e) The 2D scatter graph of the graphene in the hybrid QD-GR structure and the 3D colour graph of the RDG isosurface with a cutoff value of 0.6 a.u., respectively, (the inset shows the side view). (f) The 2D overlap scatter graph of the QD, the graphene and hybrid structure in the hybrid QD-GR system. (g) The 3D colour graph of the RDG isosurface between the QD and graphene in hybrid QD-GR structure with a cutoff value of 0.6 a.u., (the inset shows the side view).
