From: The demographic response of a deciduous shrub (the Indigofera bungeana complex, Fabaceae) to the Pleistocene climate changes in East Asia

Figure 2

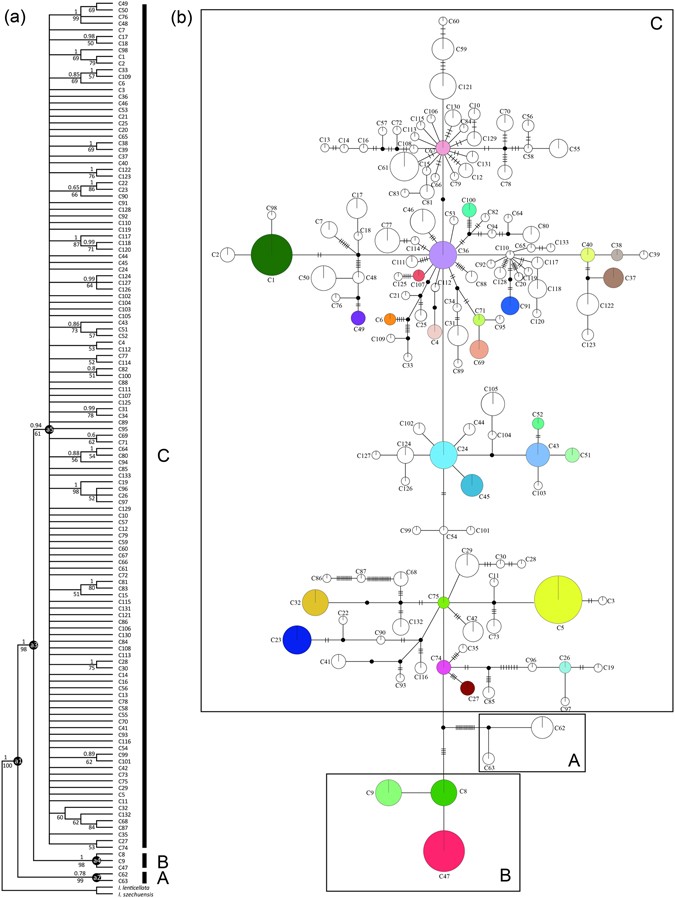

The evolutionary relationships among cpDNA haplotypes of Indigofera bungeana complex. (a) NJ phylogenetic tree of the 133 cpDNA haplotypes. Numbers above/below branches represent Bayesian posterior probabilities/NJ support values. (b) Maximun parsimony network. The size of circles corresponds to the frequency of each haplotype and black dots represent missing haplotypes (not sampled or extincted). Lineages (A, B, C) and clades (a1, a2, a3, a4, a5) correspond to the lineages and clades in Table 1 and Supplementary Table S1.
