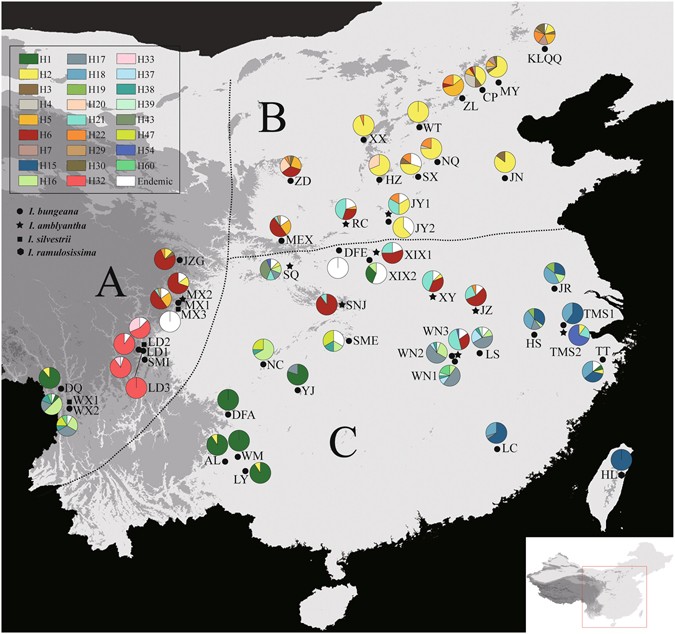

Figure 3

Geographic distribution of Pgk1 haplotypes detected in Indigofera bungeana complex. The haplotypes found in more than one population are color-coded, while private haplotype particular to each population are shown in white. Figure was generated in DIVA-GIS 7.5 (http://www.diva-gis.org.).
