From: The demographic response of a deciduous shrub (the Indigofera bungeana complex, Fabaceae) to the Pleistocene climate changes in East Asia

Figure 5

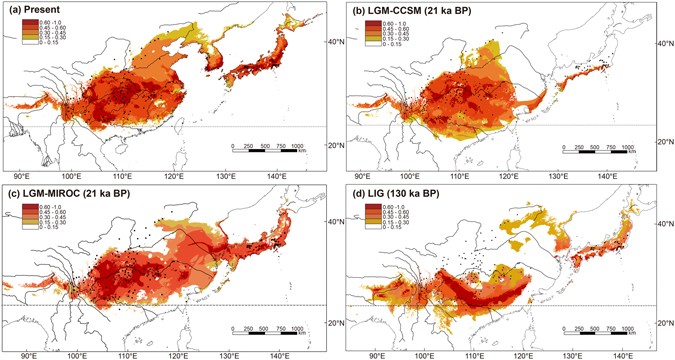

Modelled climatically suitable areas for Indigofera bungeana complex at different times using Maxent. Niche model results were modified in ArcGIS version 10.0 (http://www.esri.com/software/arcgis/arcgis-for-desktop). (a) The present; the last glacial maximum (LGM: c. 21 ka BP) under the (b) CCSM and (c) MIROC models, and (d) the last interglacial (LIG: c. 130 ka BP). The logistic value of habit suitability is shown according to the color-scale bars.
