Figure 3 | Scientific Reports

Figure 3

From: Muscle-specific downregulation of GR levels inhibits adipogenesis in porcine intramuscular adipocyte tissue

Figure 3

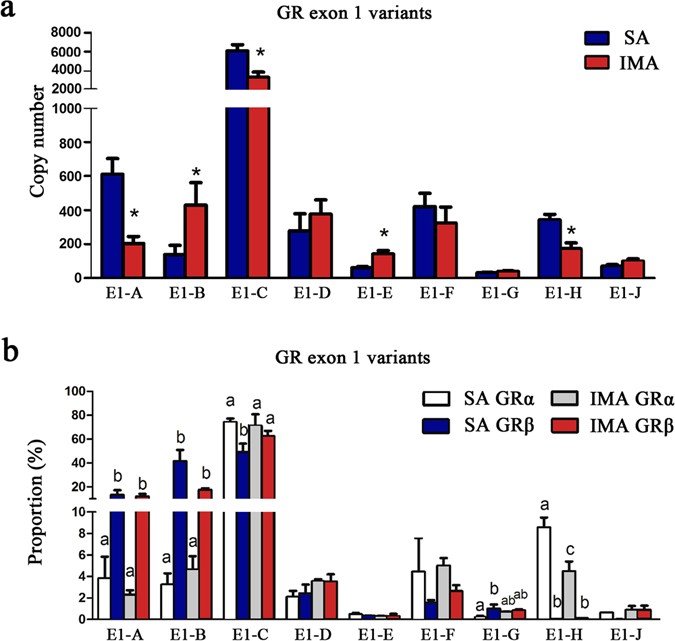

Expression patterns of GR exon 1 variants. (a) Copy number of GR exon 1 variants in SA and IMA tissues. n = 12 per group, *P < 0.05. (b) Variants proportion of GRα and GRβ in SA and IMA tissues. n = 6 per group, within column the different lowercases mean significant difference (One-way ANOVO, P < 0.05) within the columns, and the same lowercase means no significant difference (One-way ANOVO, P > 0.05).
