Figure 3
From: New crystal structure prediction of fully hydrogenated borophene by first principles calculations

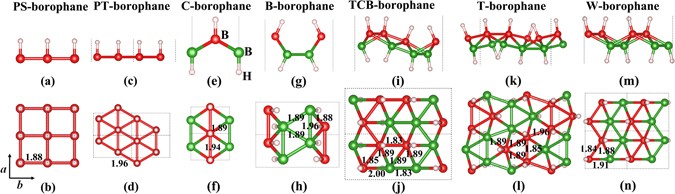

Crystal structure of seven borophane conformers. (a) Side view with b-c plane shown, (b) top view of atomic structure of PS-borophane. (c) Side view with b-c plane shown, (d) top view of atomic structure of PT-borophane. (e) Side view with b-c plane shown, (f) top view of atomic structure of C-borophane. (g) Side view with b-c plane shown, (h) top view of atomic structure of B-borophane. (i) Side view with b-c plane shown, (j) top view of atomic structure of TCB-borophane. (k) Side view with b-c plane shown, (l) top view of atomic structure of T-borophane. (m) Side view with b-c plane shown, (n) top view of atomic structure of W-borophane. The numbers are the B-B bond lengths in Å. The big red and green balls represent B atoms, the small light pink balls represent H atoms, respectively.
