Figure 2
From: Giant field enhancement in high-index dielectric subwavelength particles

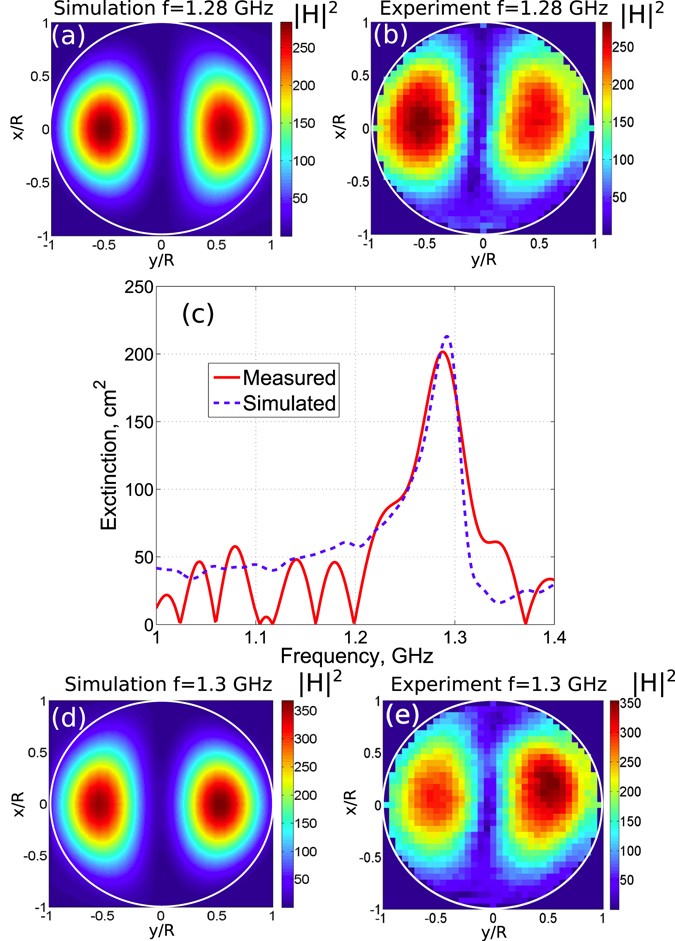

Numerically simulated and experimentally measured magnetic field distributions in the cylinder cross section placed at the 3 cm distance from its top surface at the frequency (a,b) 1.28 GHz and (d,e) 1.3 GHz for the TE polarized plane wave excitation. The magnetic field is normalized over the incident wave component H 0. (c) Measured and simulated extinction cross sections of the cylinder, which is filled with distilled water at temperature 90 °C. The incident plane wave propagates along the y-axis. The axis of the cylinder is parallel to the z-axis.
