Figure 4

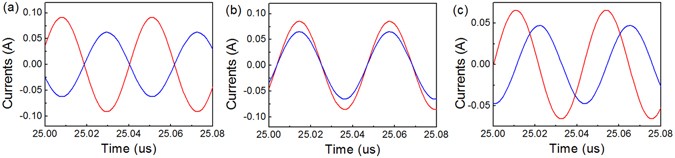

Time-domain current waveforms at resonant frequency. (a) Waveforms when the terminal load is an inductor of 68.6 nH. (b) Waveforms when the terminal load is a capacitor of 686 pF. (c) Waveforms when the terminal load is a resistor of 10 Ω. Red lines represent current I 1, and blue lines represent current I 2.
