Figure 5
From: Pavlovian conditioning demonstrated with neuromorphic memristive devices

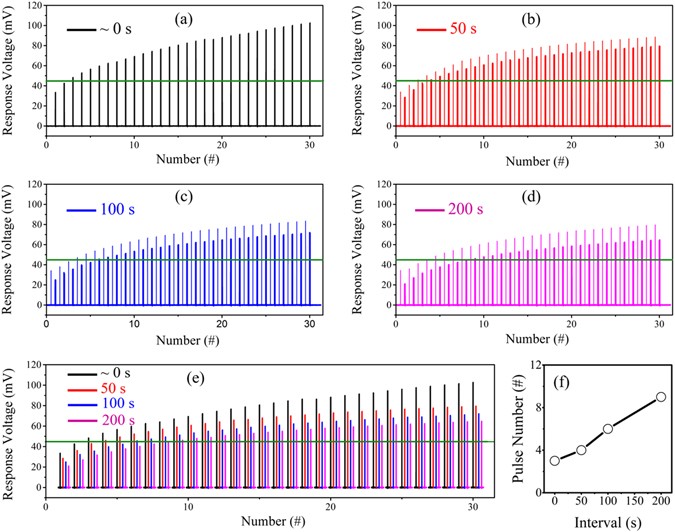

Effect of time interval between individual training trials on acquisition. The time intervals are approximately 0 s, 50 s, 100 s and 200 s in (a) to (d), respectively. The CS-US temporal relation is fixed to 4 ms. The coarse lines are the response voltage tested after the corresponding time interval. The fine lines are the voltage checked immediately after the stimuli. (e) Comparison of the response voltage with different time intervals in (a) to (d). Only coarse lines are compiled. (f) Necessary number of training trials for acquisition with different time intervals.
