From: Molecular diagnostic assays based on cpn60 UT sequences reveal the geographic distribution of subgroup 16SrXIII-(A/I)I phytoplasma in Mexico

Figure 5

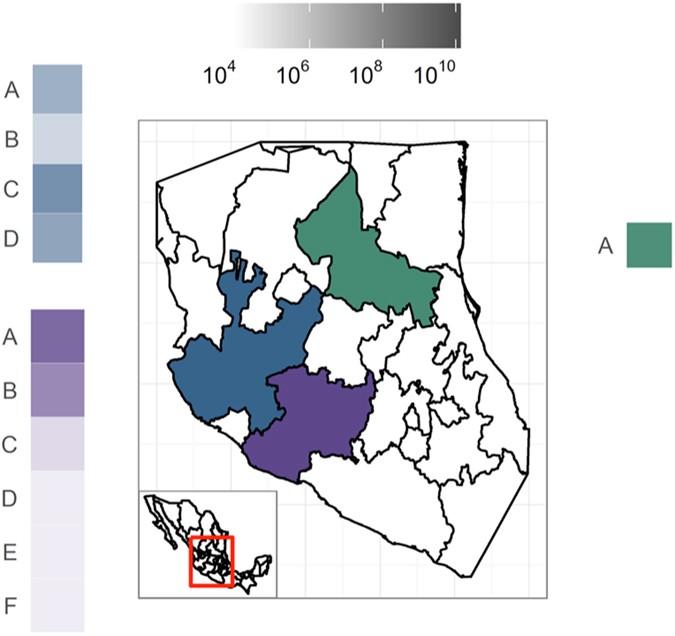

Geographic distribution of SbGP/MPV phytoplasma per farm in central Mexico. Samples from San Luis Potosi (green), Michoacan (blue), and Jalisco (purple) states were examined using qRT-PCR targeting cpn60. Samples from each locality within each state (A-F) are shaded according to the mean number of copies of SbGP/MPV phytoplasma cpn60 per g tissue extracted. To generate the map, data was accessed from the GADM database (Global Administrative Areas 2012). GADM database of Global Administrative Areas, version 2.0. [online] URL: www.gadm.org) and plotted in R (http://www.R-project.org/) using ggplot259.
