Figure 7
From: Biochemistry of malaria parasite infected red blood cells by X-ray microscopy

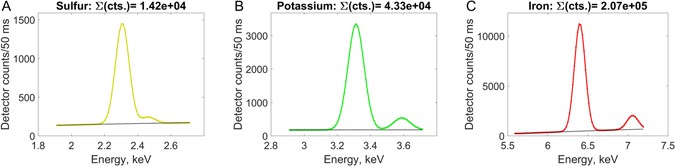

X-ray fluorescence spectra of (A) sulfur, (B) potassium and (C) iron from the projected area labeled 5 in Figure 6. The dotted black line is a smoothed background fit. The spectra as well as the background are derived from the fit provided by the PyMCA program. The doublets are K α and K β fluorescent radiation. The summed count rate above the black background line is shown in the top of each panel.
