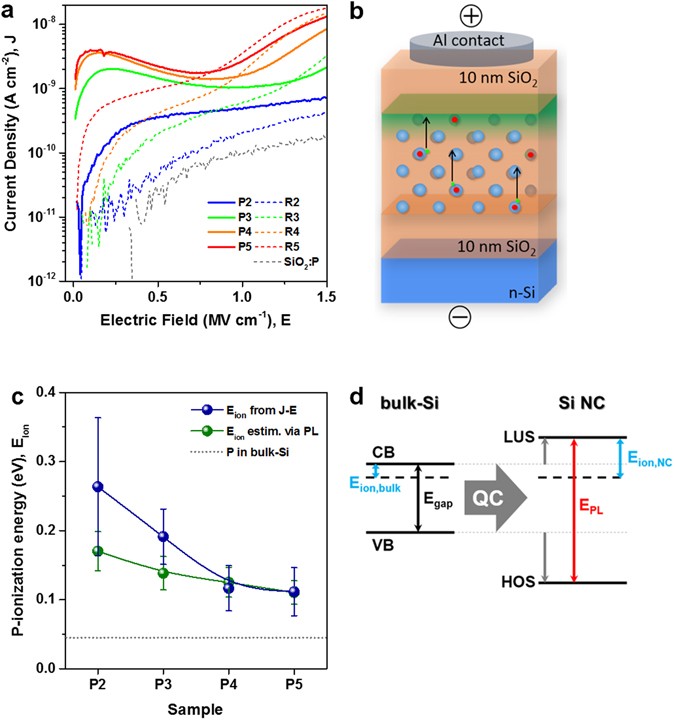

Figure 3

Current-voltage measurements (I-V) and derived ionization energies of P-atoms in Si NCs. (a) Current density vs. electric field of sample set E (P: Si NCs incorporating on average ~1 P-atom per NC, R: undoped reference samples). At low E-fields the P-samples (solid lines) clearly exhibit higher displacement current densities than the respective reference sample (dashed lines). (b) The schematic shows the sample structure (large blue spheres: Si NCs, red points: P-atoms in Si NCs, small green points: donor electrons localized at P-atoms in thermal equilibrium): Since charge injection from gate or substrate is blocked at low fields, only transient displacement currents caused by P-donors are measured, which accumulate under the gate electrode (shown in green). (c) Ionization energies of P-donors derived from I-V measurements according to Equation (2) with the mean size of the P-incorporation fraction of NCs (cf. Fig. 2c) as d _NC (blue); and P-ionization energies estimated via the PL-peak energy (green). Both methods yield similarly high P-ionization energies compared to P in bulk-Si (45 meV; grey dotted line). The values increasingly deviate from each other towards smaller NCs but are still within the error bars, which are based on the standard deviations of the NC-size and the uncertainties of the J-peak or respectively the PL peak width. (d) Schematic for the estimation of E _ion via PL, assuming a Si NC bandgap energy equal to the PL peak energy and a QC-induced LUS-to-HOS shift ratio of 1:2 ³⁷.
