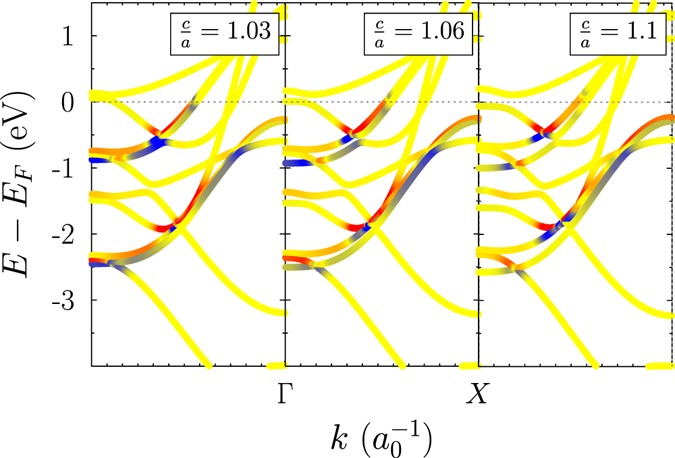

Figure 5
From: Magnetic moment of inertia within the torque-torque correlation model
Moment of inertia in the electron band structure for bulk fcc Co strained along the z axis. The magnetic moment is also in z direction. The colour and the intensity indicates the sign and value of the inertia contribution (blue −ι < 0; red −ι > 0; yellow −\(\iota \approx 0\)). The dotted grey line is the Fermi energy and \({\rm{\Gamma }}\) is 0.1 eV. Note that we analyse for simplicity and clarity only one contribution, A n B m , in the expression for V nm . The integrated moment of inertia is ι = 4.78 · 10−4 fs, ι = 4.88 · 10−4 fs, and ι = 5.31 · 10−4 fs for c/a = 1.03, c/a = 1.06, and c/a = 1.1, respectively.
