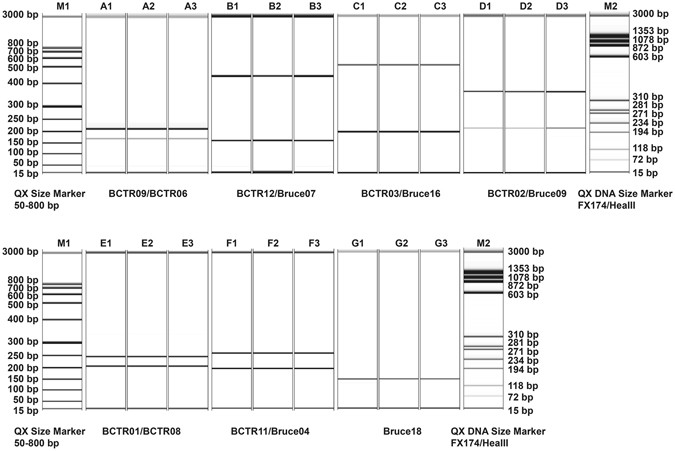

Figure 3

Electrophoresis images of B. canis isolate D13-123417 #42 amplified with 13 VNTR locus primers after in vitro propagations. Lane A1–A3: original, 10^th and 20^th subcultures by BCTR09 (upper) and BCTR06 (lower); Lane B1–B3: original, 10^th and 20^th subcultures by BCTR12 (upper) and Bruce07 (lower); Lane C1–C3: original, 10^th and 20^th subcultures by BCTR03 (upper) and Bruce16 (lower); Lane D1–D3: original, 10^th and 20^th subcultures by BCTR02 (upper) and Bruce09 (lower); Lane E1–E3: original, 10^th and 20^th subcultures by BCTR01 (upper) and BCTR08 (lower); Lane F1–F3: original, 10^th and 20^th subcultures by BCTR11 (upper) and Bruce04 (lower); Lane G1–G3: original, 10^th and 20^th subcultures by Bruce18. Lane M1: QX Size Marker 50–800 bp. Lane M2: QX Size Marker FX174/HeaIII.
