Figure 7
From: Imaging of underground cavities with cosmic-ray muons from observations at Mt. Echia (Naples)

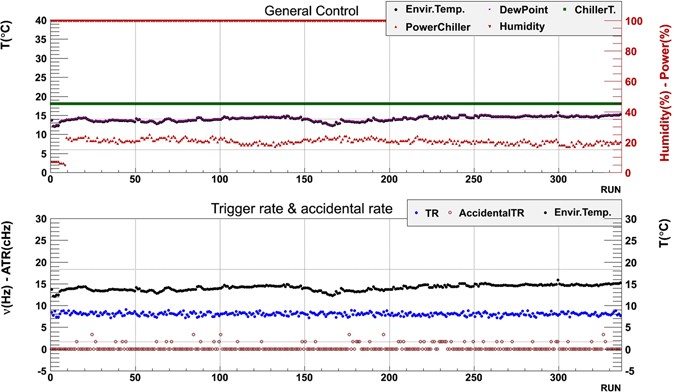

Stability of the main parameters that monitor the status of the detector during the Mt. Echia data tacking. Top: Environmental temperature, dew point temperature, chiller temperature and power, relative humidity. Bottom: Trigger rate, accidental rates, environmental temperature. The drawing was obtained using the software root.
