Figure 2
From: Irradiation-induced β to α SiC transformation at low temperature

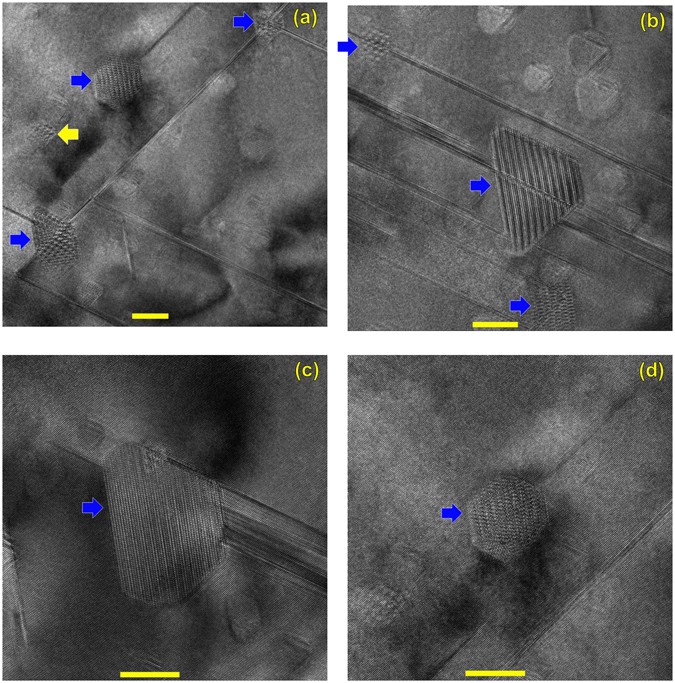

HRTEM images on the [101] zone. Several apparent second-phase precipitates, arrowed, are present. Most or all of these precipitates are located adjacent to a Frank loop (blue ⇒ arrows), and one appears not to be adjacent to a Frank loop (yellow ⇐ arrow). All scale bars 10 nm.
