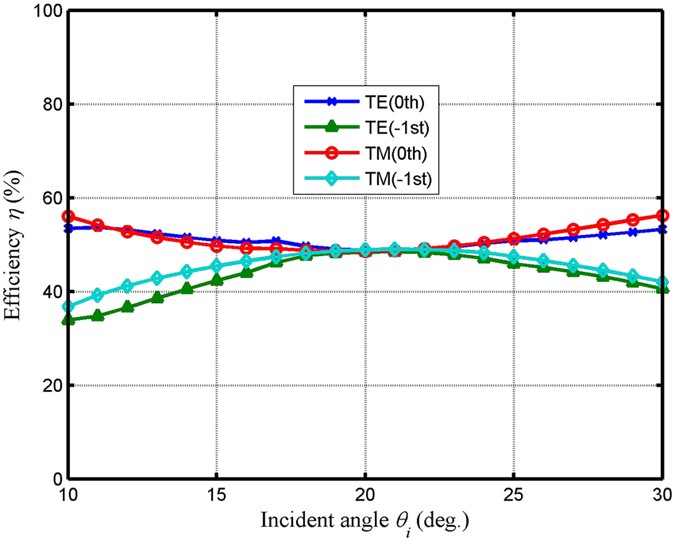

Figure 3
From: Two-port connecting-layer-based sandwiched grating by a polarization-independent design
Efficiency versus the incident angle in the 0th order and the −1st order for both polarizations at a wavelength of 800 nm under the Littrow mounting.
