From: A genetic screen in combination with biochemical analysis in Saccharomyces cerevisiae indicates that phenazine-1-carboxylic acid is harmful to vesicular trafficking and autophagy

Figure 3

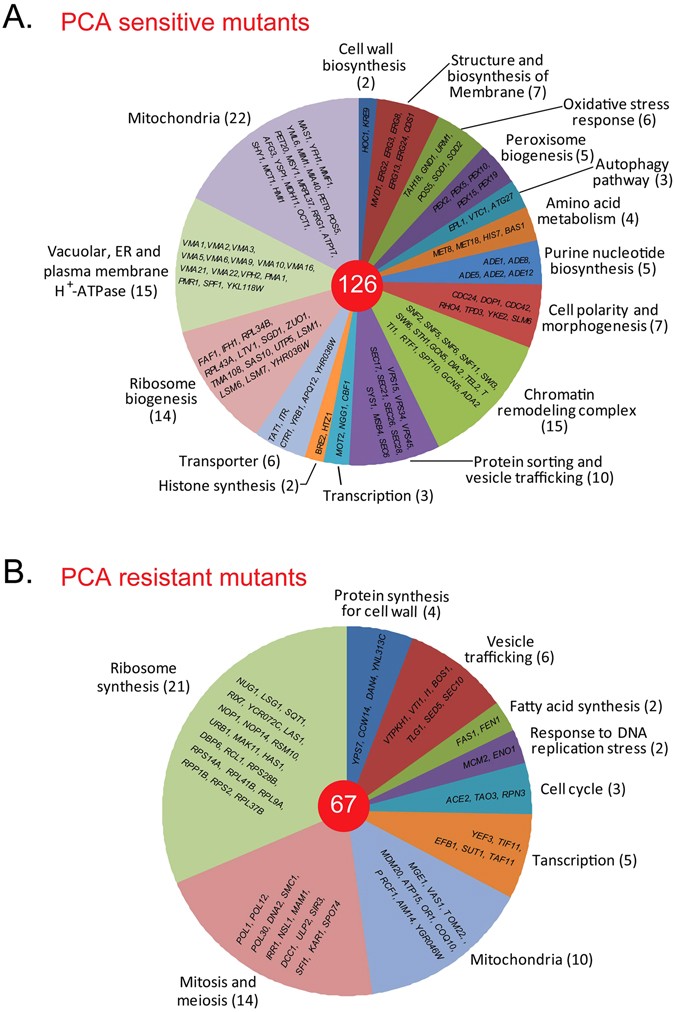

Summary of PCA-sensitive and -resistant mutants detected by screening a S. cerevisiae mutant library. (A) Saccharomyces cerevisiae mutants with increased sensitivity to PCA. The categories of metabolism are presented as a pie chart, with the number of genes in parentheses. Detailed genes are listed on the pie. Total numbers of genes are listed in the red circle in the middle. (B) Saccharomyces cerevisiae mutants with increased resistance to PCA. Data are presented as in panel A.
