From: Is there an association between enhanced choline and β-catenin pathway in breast cancer? A pilot study by MR Spectroscopy and ELISA

Figure 4

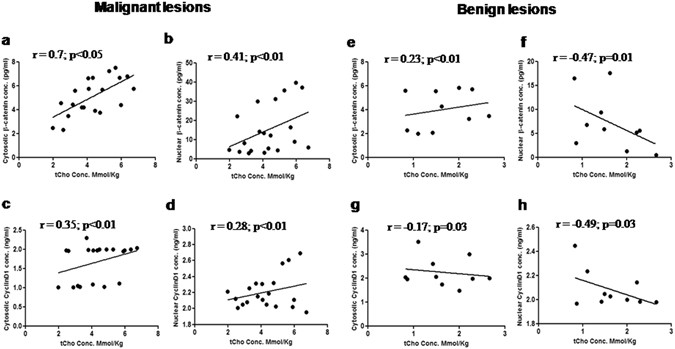

Scatter plots (a–d) represent the positive correlation of cytosolic and nuclear expression of β-catenin and cyclin D1 with tCho levels in malignant breast tissues. While, (e) shows a weak positive correlation of cytosolic β-catenin with tCho levels in benign breast tissues and (f–h) show negative correlation of nuclear β-catenin and cytosolic and nuclear cyclin D1 with tCho levels in benign breast tissues.
