Figure 4
From: Rational modular design of metabolic network for efficient production of plant polyphenol pinosylvin

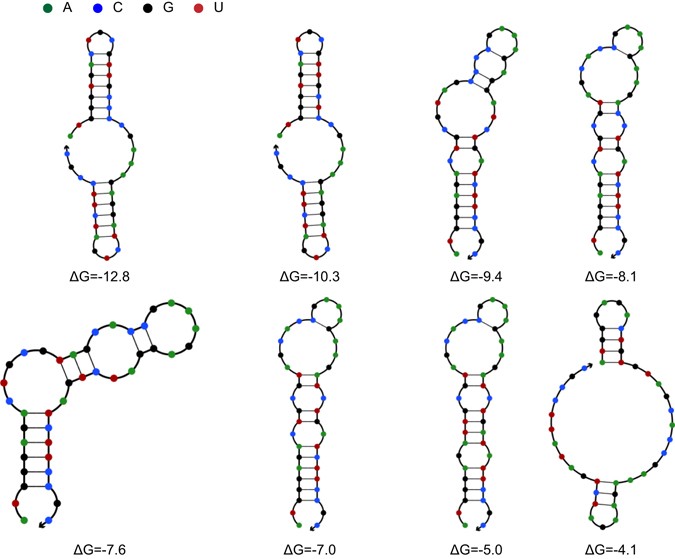

Predicted mRNA secondary structures of the 5′ region of different variant 4CL. Numbers such as −12.8, −10.3 meant ΔG (kcal/mol) for the 5′ region of mRNA secondary structure. The figure exhibited the secondary structure of the region ranged from nt +1 to +42. ΔG of original 4CL was −12.8 kcal/mol.
